RX200 S8
Upgrade and Maintenance Manual 251
Front panel and front VGA/LAN module
Ê Push the front VGA/LAN module into the bay from the front (1) until the
locking mechanism engages (2).
13.2.6 Connecting the front VGA cable

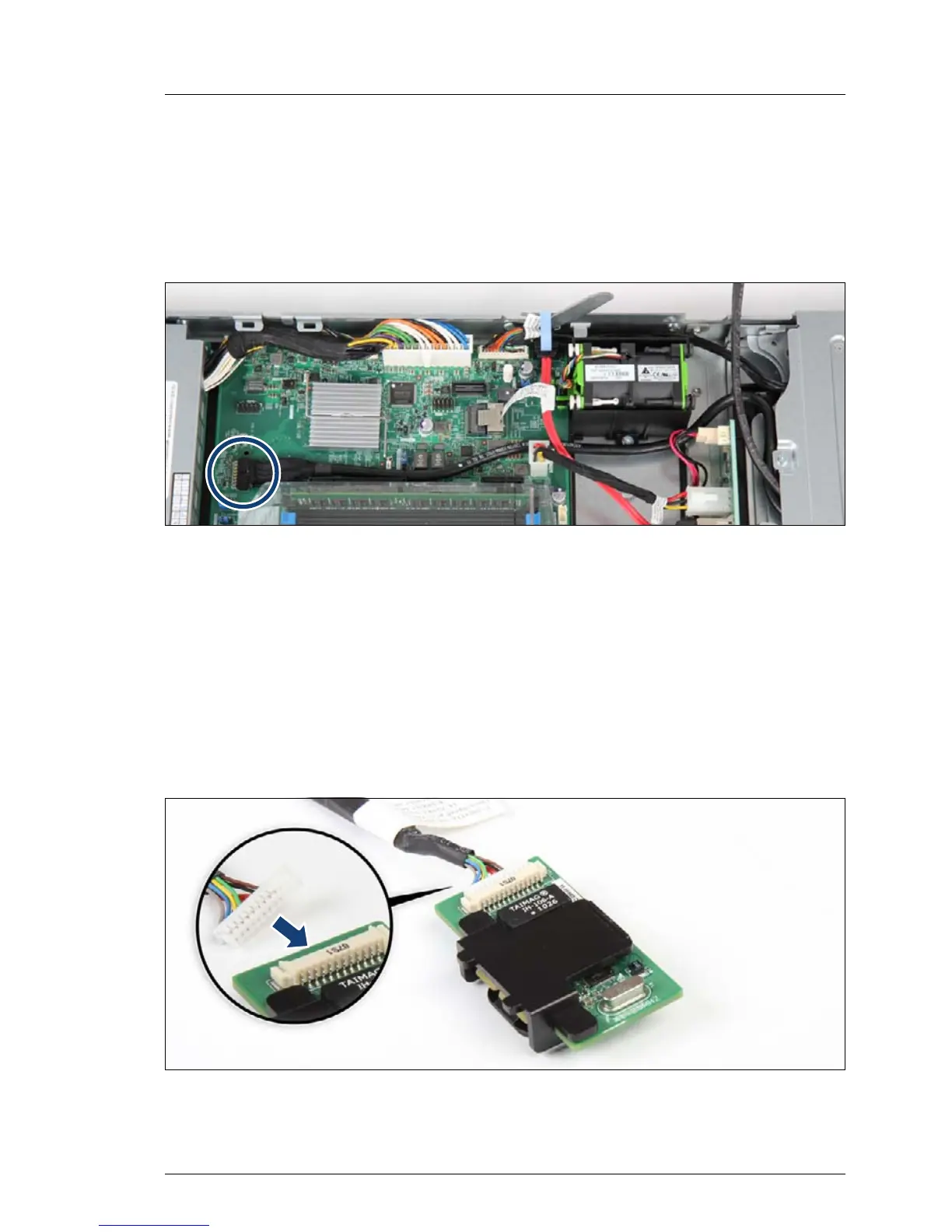

Figure 181: Connecting the front VGA cable
Ê Route the front VGA cable as shown in the photo.
Ê Connect the front VGA cable to the system board connector "FRONT VGA".
13.2.7 Connecting the front LAN cable
I The front LAN card is already mounted in its holder.
Figure 182: Connecting the front LAN cable to the front LAN card
Ê Connect the front LAN cable to the front LAN card.
