RX200 S8
Upgrade and Maintenance Manual 51
Basic hardware procedures
4.4.3 Removing the fan cover
You must remove the fan cover before removing the housing cover.

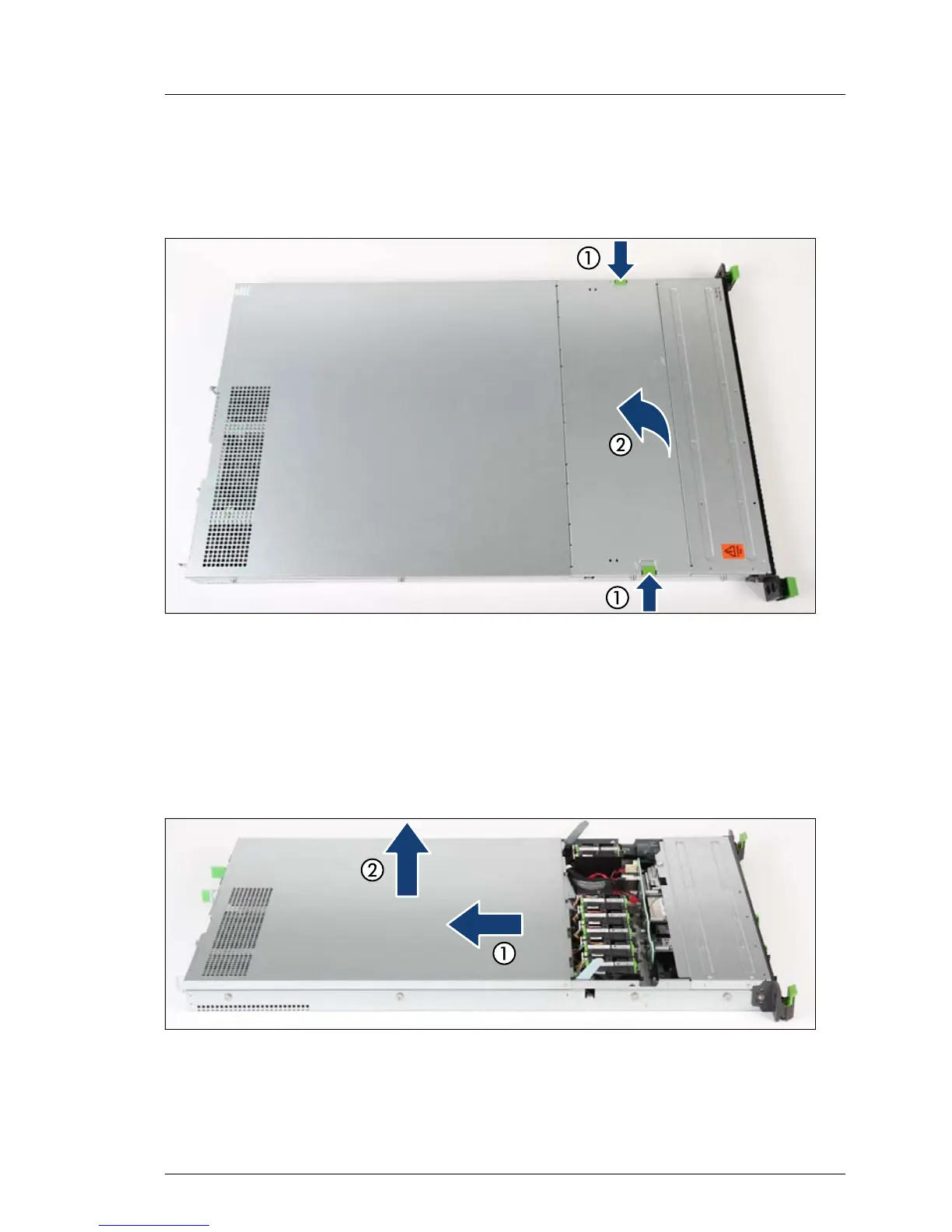

Figure 5: Removing the fan cover
Ê Push the two green buttons (1) in the direction of the arrow.
Ê Lift the fan cover upward and remove it (2).
4.4.4 Removing the housing cover
Figure 6: Removing the housing cover
Ê Push the housing cover as far as it will go in the direction of the arrow (1).
Ê Lift off the housing cover upward (2).
