RX200 S8
Upgrade and Maintenance Manual 241
Optical disk drive
Ensure that the pins on the mounting frame disengage with the screw holes
on the ODD.
Ê Remove the ODD (2).
12.3.3 Installing the dummy module

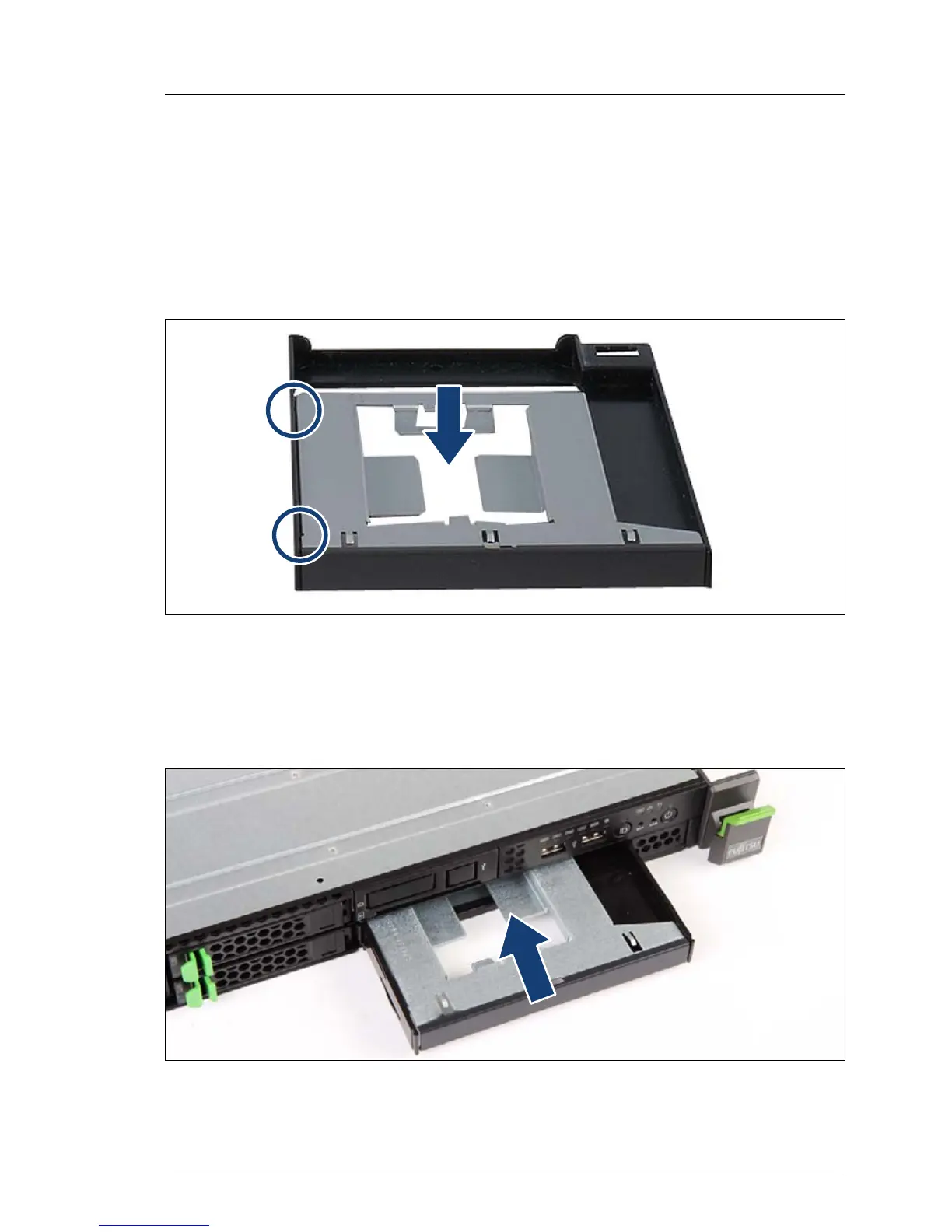

Figure 170: Installing the dummy in the mounting frame
Ê Insert the dummy in the mounting frame.
Ensure that the pins on the mounting frame engage with the screw holes on
the dummy and fix them in this position (see circles).
Figure 171: Installing the dummy module
Ê Push the dummy module inward until it engages.
