300 Upgrade and Maintenance Manual
RX200 S8
System board and components

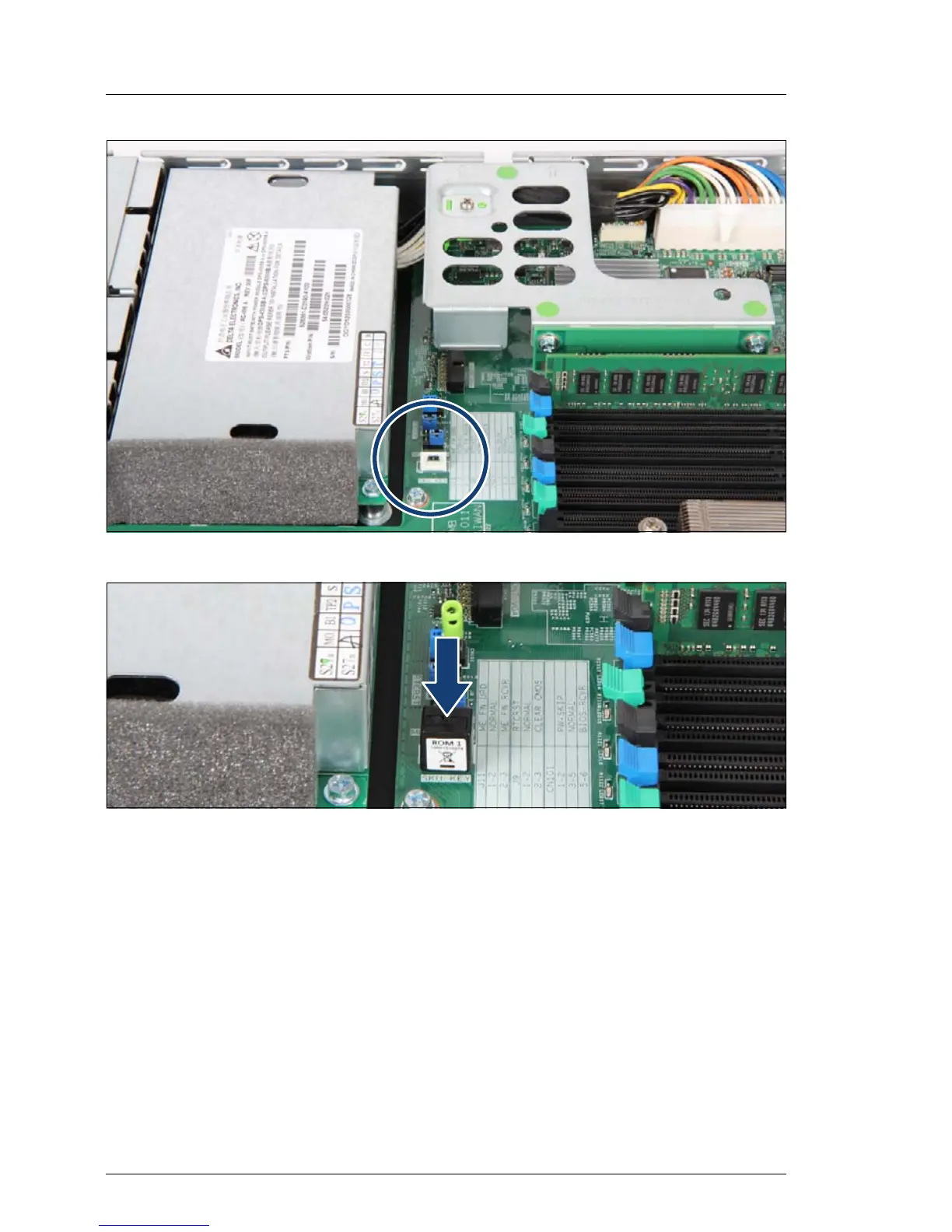

Figure 233: Position onboard SAS enabling key
Figure 234: Installing the onboard SAS enabling key
Ê Connect the onboard SAS enabling key to the connector "SKU KEY" on the
system board.
15.5.1.3 Concluding steps
Ê "Installing the air duct" on page 62
Ê "Reassembling" on page 52
Ê "Connecting the server to the mains" on page 57
Ê "Switching on the server" on page 58
Ê "Verifying system information backup / restore" on page 73
