RX200 S8
Upgrade and Maintenance Manual 121
Hard disk drives / solid state drives
7.6.2 Removing the defective 8xHDD backplane
Ê Release all HDD/SSD modules and pull them out a few centimeters, see
section "Removing the 2.5-inch HDD/SSD module" on page 114
I The HDD/SSD modules need not to be completely removed. But if
you want to completely remove them nevertheless, check if all
HDD/SSD modules are uniquely identified so that you can reinsert
them into their original bays.

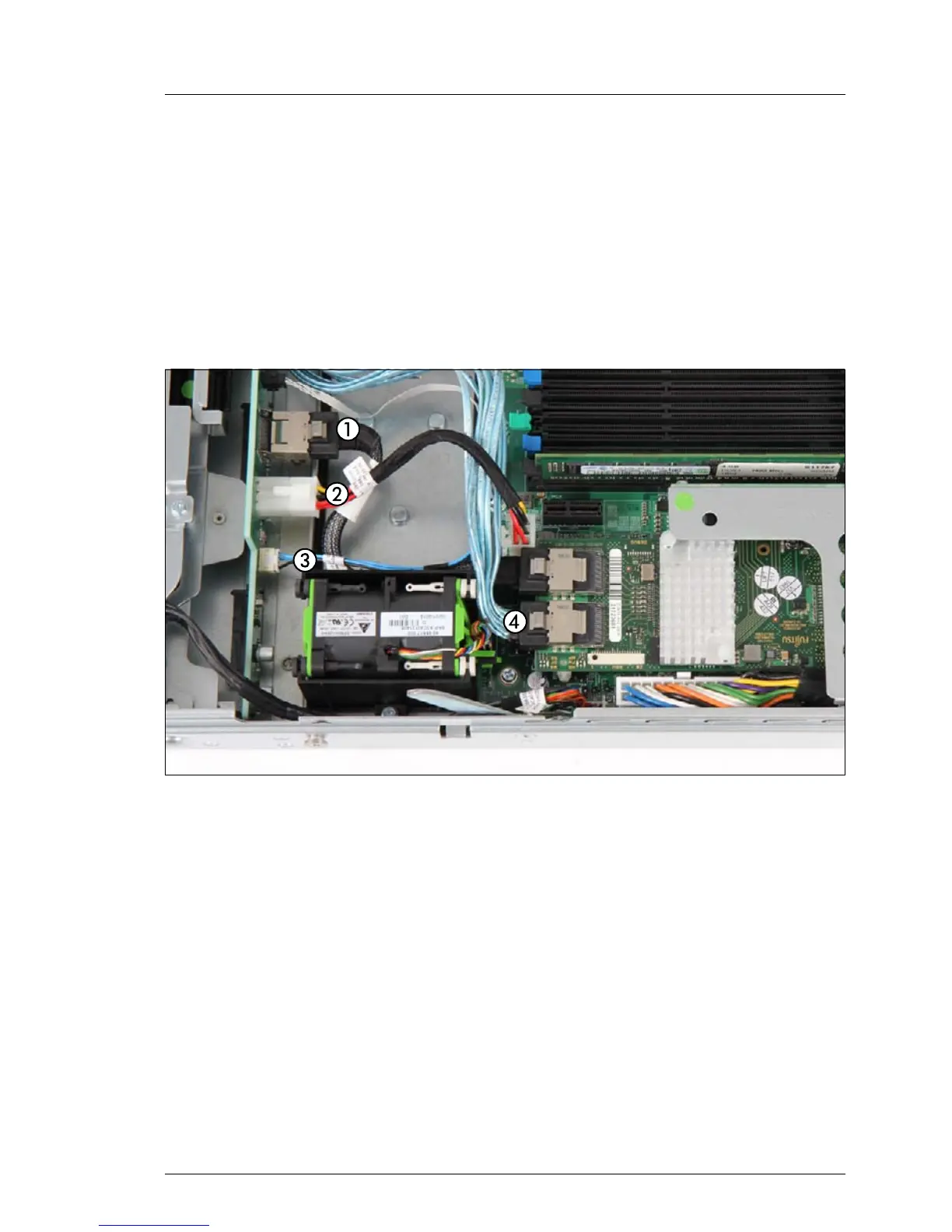

Figure 49: Disconnecting cables from the 8xHDDbackplane
Ê Disconnect the following cables from the 8xHDD backplane:
– (1) SAS data cable channel A from connector "CN1"
– (2) power cable from connector "CN20"
– (3) I
2
C cable (HDD monitoring) from connector "CN14" (if applicable)
Ê Disconnect the SAS data cable (4) from the RAID controller connector
"MLC1".
For the cable plan see section "Cabling" on page 314.
Ê Remove all fan modules as described in section "Removing the defective
fan module" on page 133.
I Check if all fan modules are uniquely identified so that you can
reinsert them into their original bays.
