122 Upgrade and Maintenance Manual
RX200 S8
Hard disk drives / solid state drives

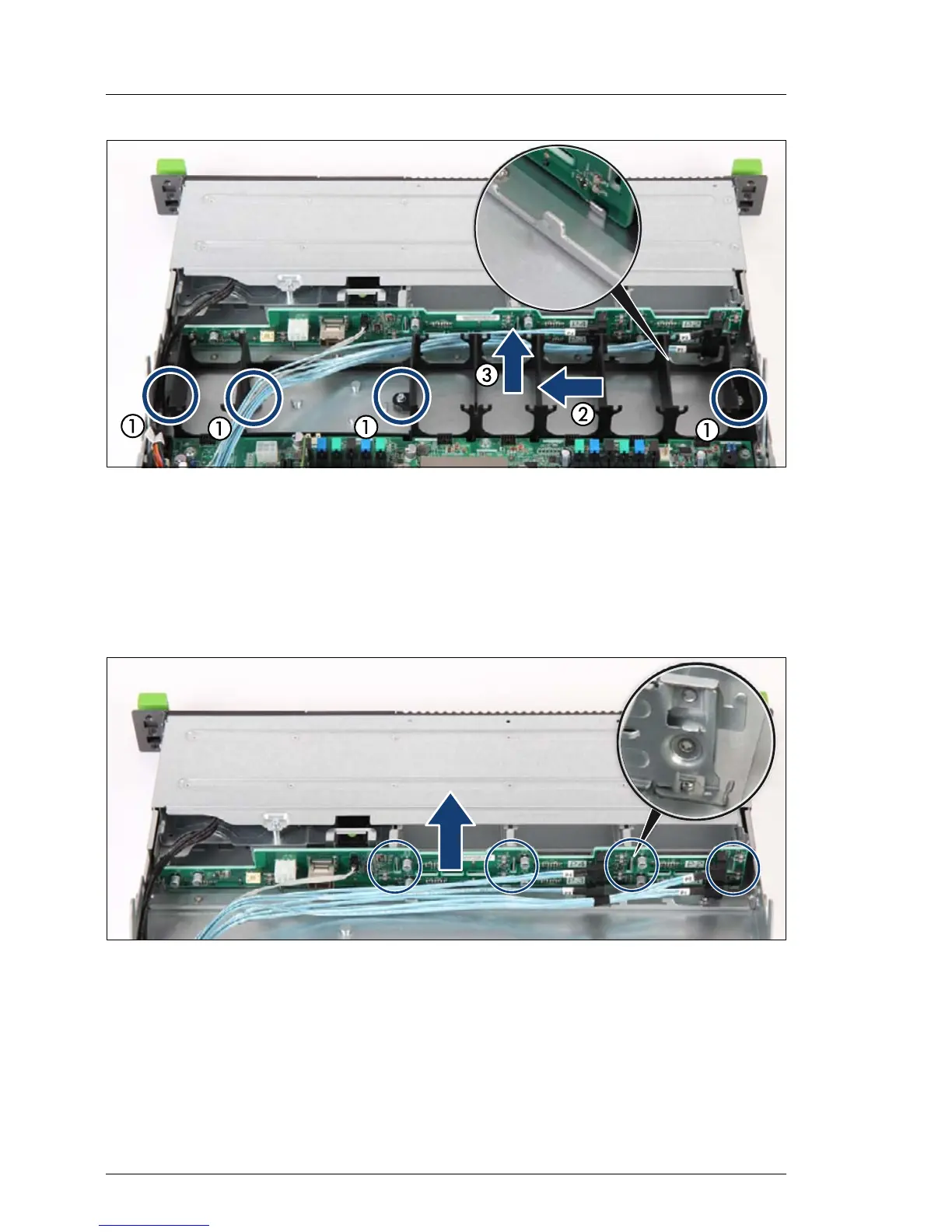

Figure 50: Removing the fan cage
Ê Remove the four screws (1).
Ê Push the fan cage somewhat in direction of the arrow (2) to disengage the
hooks (see close-up).
Ê Remove the fan cage upward (3).
Figure 51: Removing the 8xHDD backplane
Ê Pull the 8xHDD backplane upward until the lower cant gets out of the guides
(see close-up).
Ê Take the 8xHDD backplane from the hooks.
