174 Upgrade and Maintenance Manual RX200 S8
Expansion cards and backup units
9.5.2.4 Installing the BBU with the holder

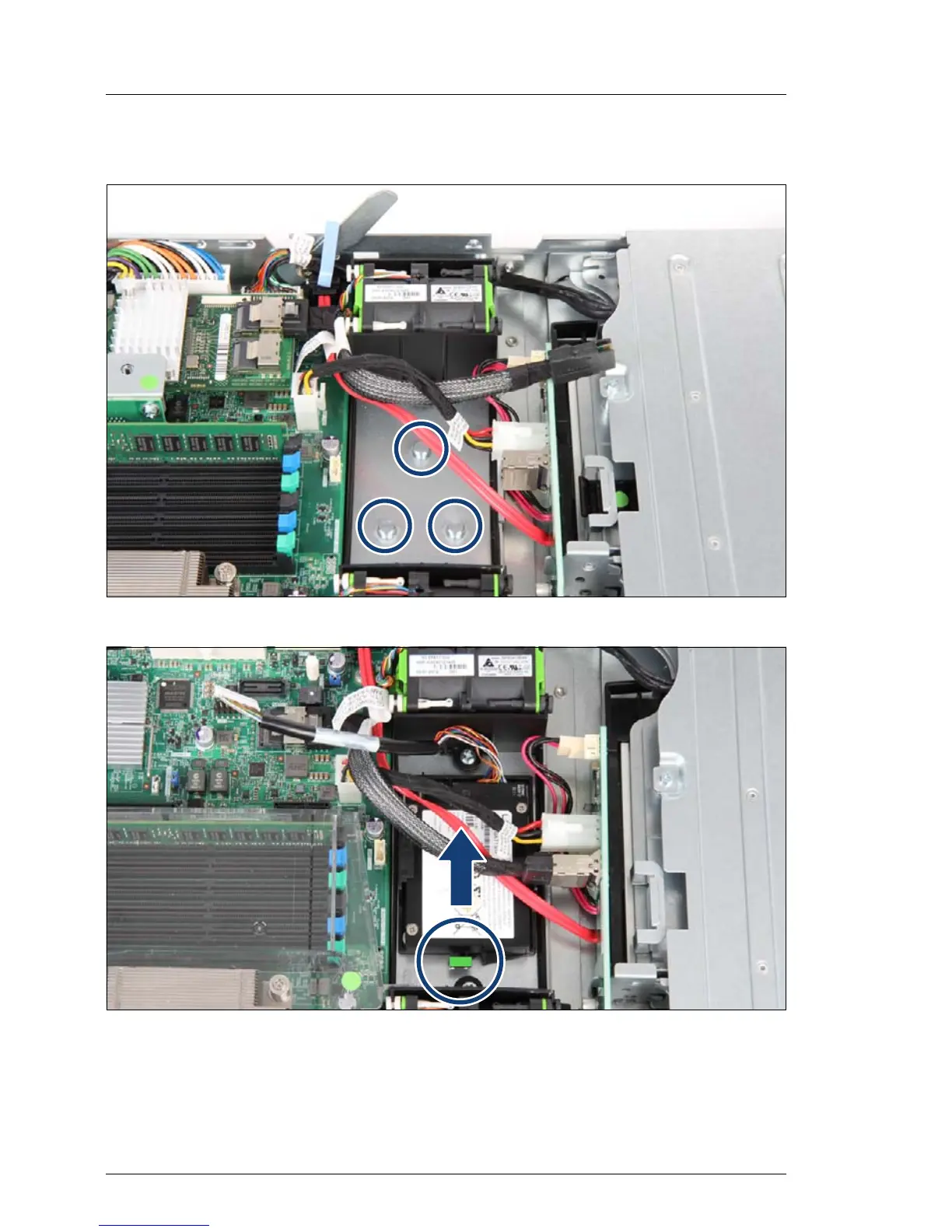

Figure 109: Position of the shoulder screw caps
Figure 110: Installing the BBU with the holder
Ê Insert the holder into the chassis so that the three shoulder screw caps on
the chassis floor rest in the wide ends of the keyhole slots on the holder.
Ê Slide the holder in direction of the arrow.
