RX200 S8
Upgrade and Maintenance Manual 133
Fans
8.2 Replacing a fan module
8.2.1 Preliminary steps
Ê "Locating the defective server" on page 43
Ê "Extending the server out of the rack" on page 48
Ê "Removing the fan cover" on page 51
Ê "Locating the defective component" on page 45
8.2.2 Removing the defective fan module

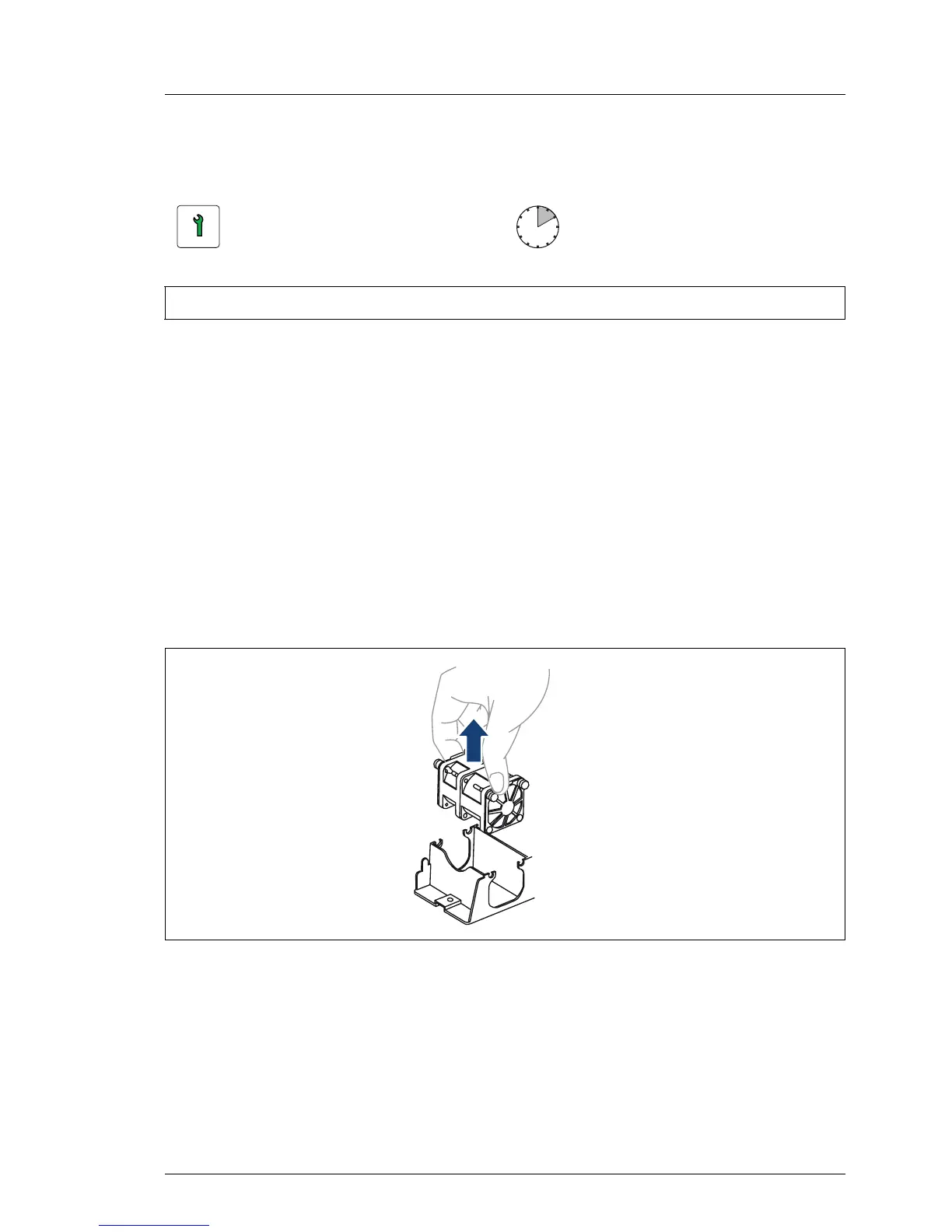

Figure 62: Removing the fan module
Ê Take out the fan module upward.
Customer Replaceable Unit
(CRU)
Hardware: 10 minutes
Tools: tool-less
