Fujitsu PRIMERGY RX200 S8 - Removing the Covers; Installing the Front Connectors

RX200 S8 Upgrade and Maintenance Manual 247
Front panel and front VGA/LAN module
Ê Pull the front VGA/LAN module out of the bay (2).
13.2.3 Removing the covers

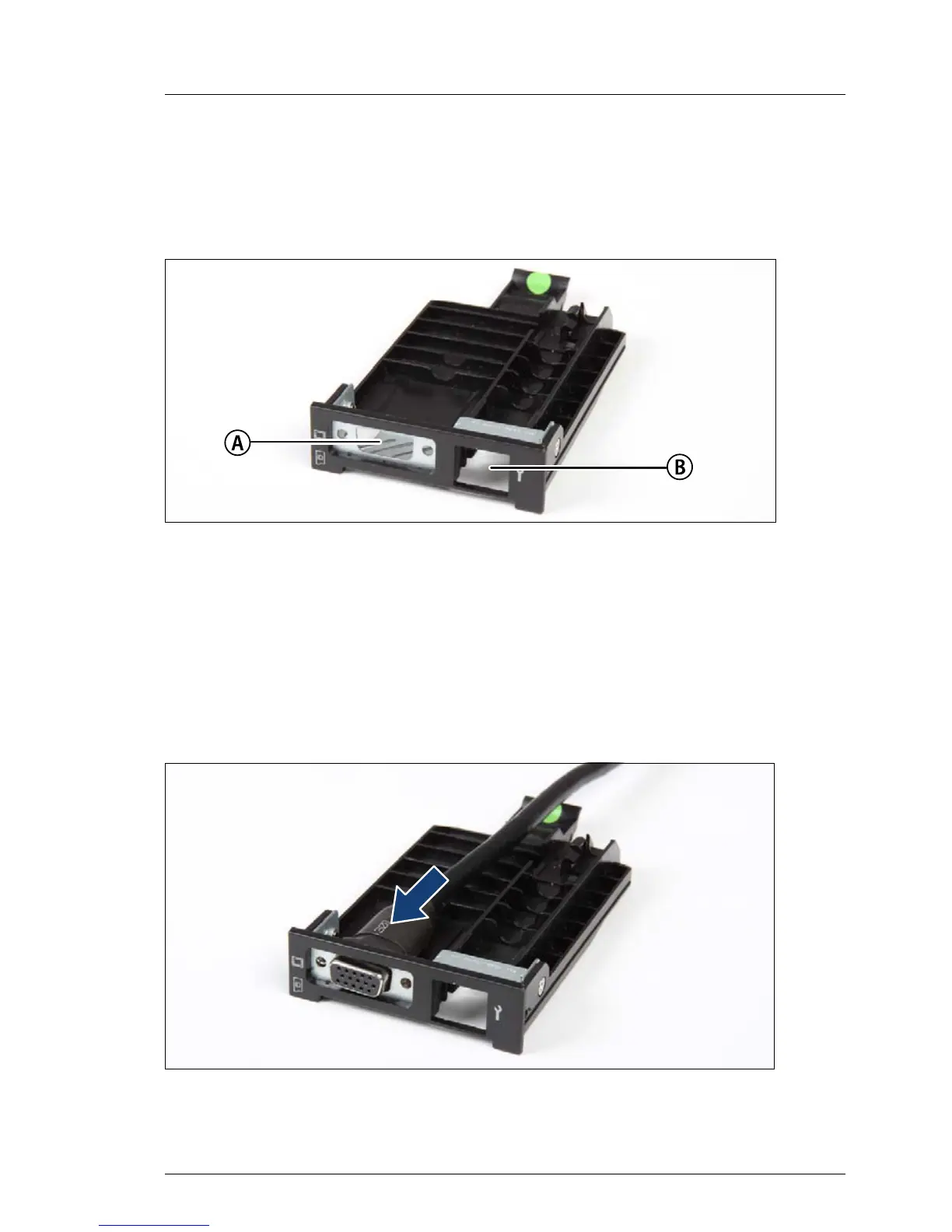

Figure 173: Removing the covers
Ê Break out the cover for the front VGA connector (A) and/or front LAN
connector (B).
13.2.4 Installing the front connectors
Installing the front VGA connector
Figure 174: Inserting the front VGA connector
Ê Insert the front VGA connector from the inside.
