14 Serial interface
Safety notes
V CAUTION!
For further safety information, please refer to chapter "Important
information" on page 31.
14.1 Basic information
The serial interface can be installed in the slot cover of riser module 1 (slot 1) or
in the slot cover of riser module 2 (slot 2).
14.2 Installing the serial interface

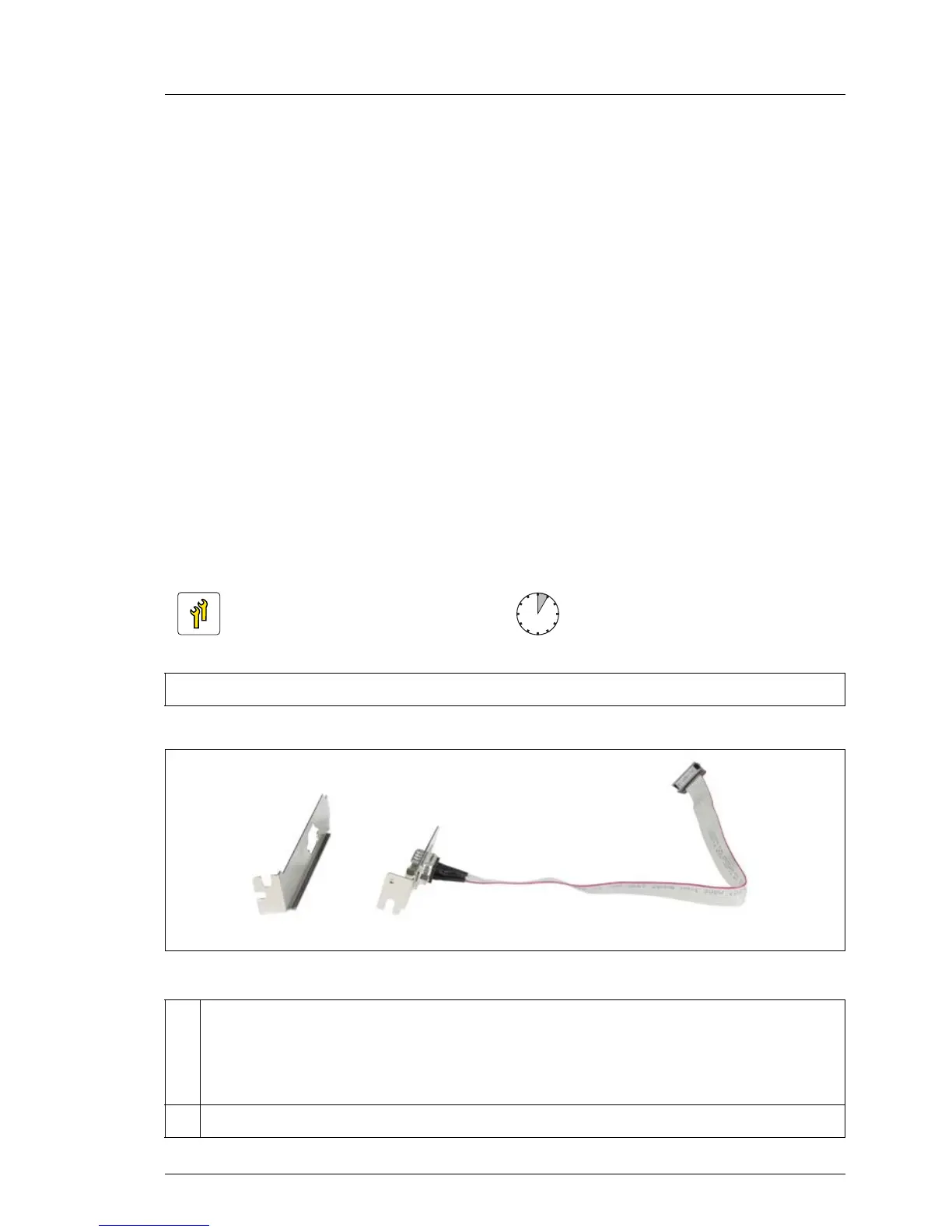

Figure 209: Serial interface kit
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Tools: tool-less
1 Long slot bracket
I The long slot bracket is not used in this server.
2 Serial interface with short slot bracket
Ԙ
ԙ
