158 Upgrade and Maintenance Manual
RX200 S8
Expansion cards and backup units
Ê Carefully press the expansion card into the riser card slot (A), until it clicks
into place.
Ê Position the expansion card on the distance holder (see circle).

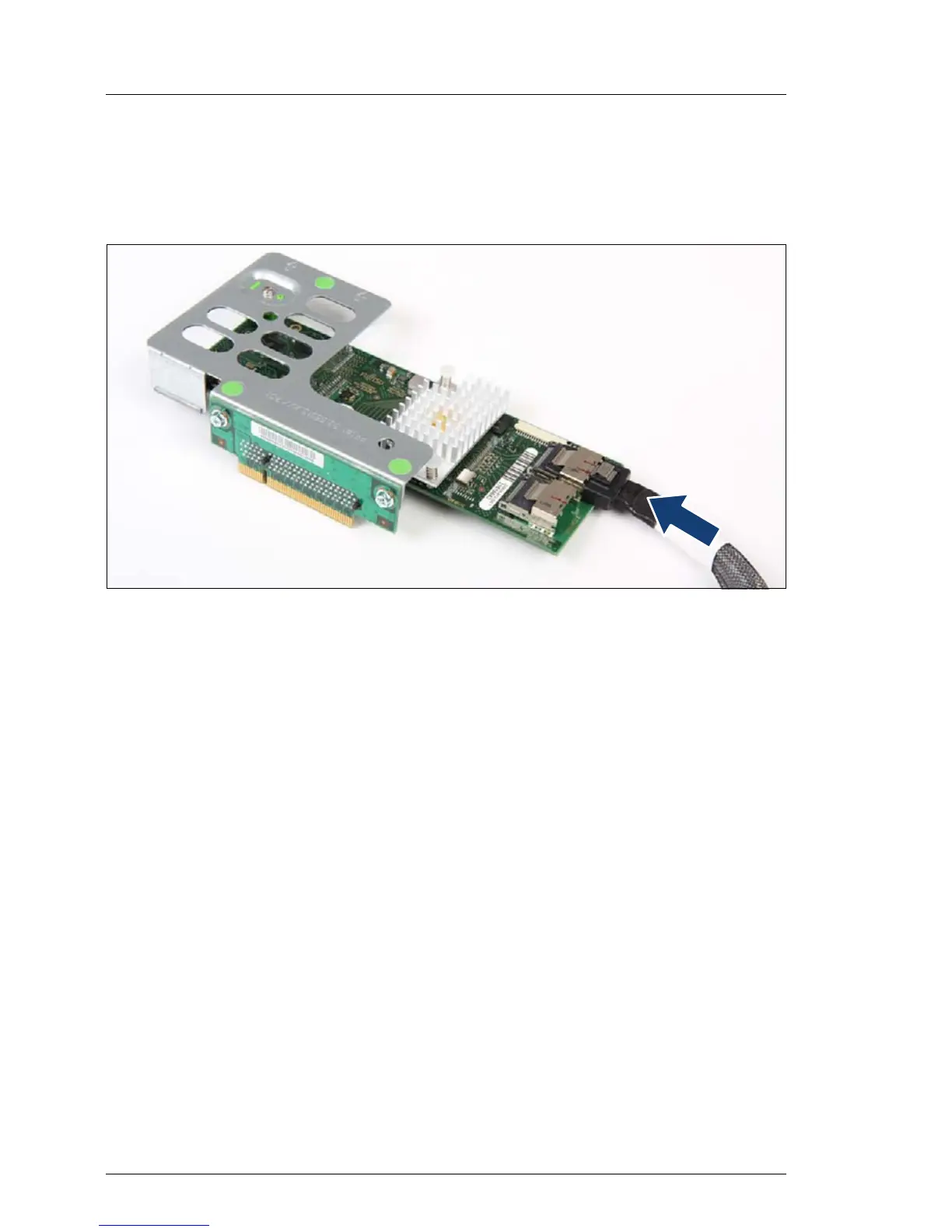

Figure 92: Connecting cables
Ê If necessary, connect the cables to the expansion card.
9.4.2.3 Concluding steps
Ê "Installing the riser module 3" on page 61
Ê "Reassembling" on page 52
Ê "Connecting the server to the mains" on page 57
Ê "Switching on the server" on page 58
Ê "Updating RAID controller firmware" on page 73
Ê If applicable, "Enabling Option ROM scan" on page 74
Ê "Enabling SVOM boot watchdog functionality" on page 78
Ê "Enabling BitLocker functionality" on page 83
