RX200 S8
Upgrade and Maintenance Manual 169
Expansion cards and backup units

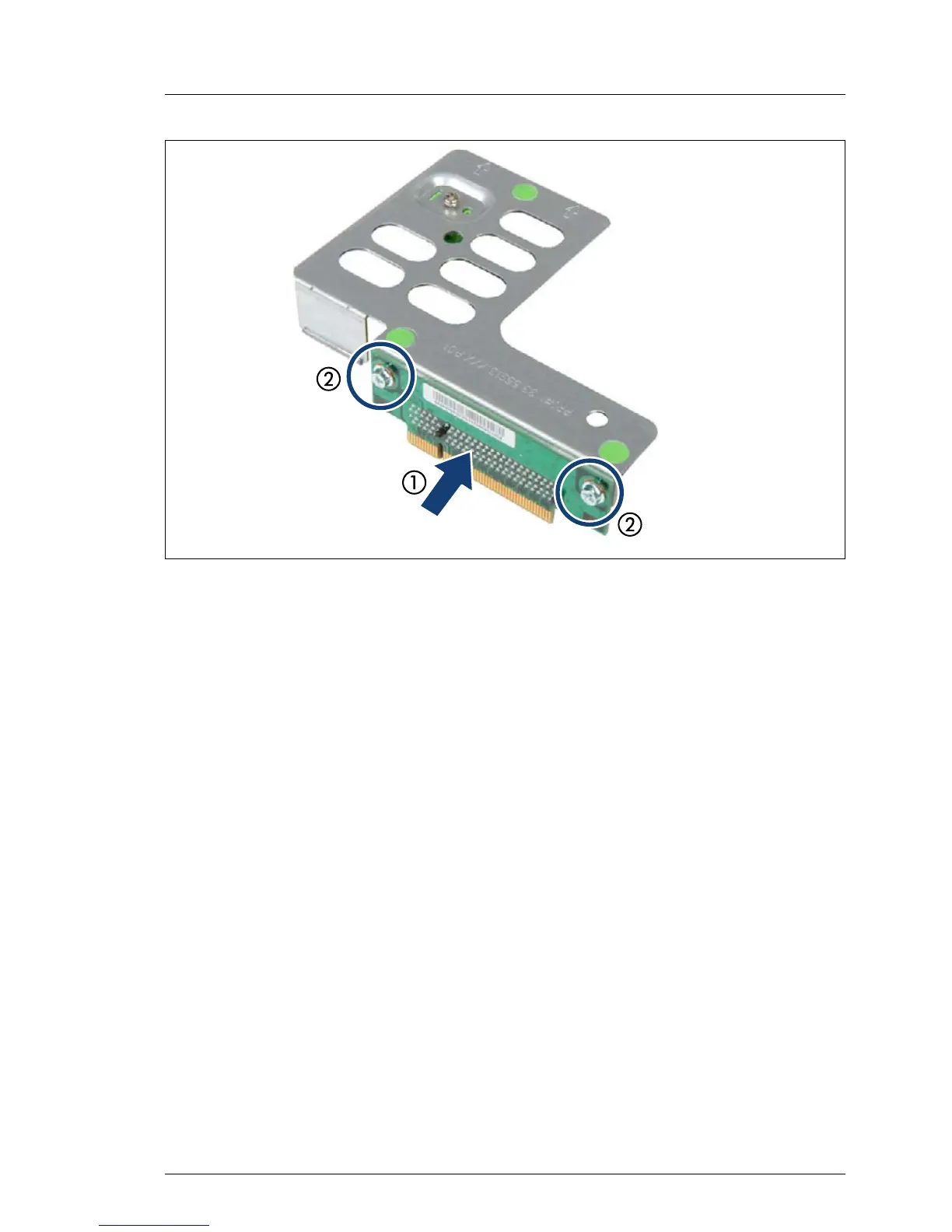

Figure 104: Installing the riser card - slot 4
Ê Insert the riser card (1).
Ê Fasten the riser card with two screws (2).
Ê Install the expansion card as described in section "Installing the expansion
card - slot 1-3" on page 154 or "Installing the expansion card - slot 4" on
page 157.
9.4.6.4 Concluding steps
Ê Install the corresponding riser module as described in section "Handling
riser modules" on page 58.
Ê "Reassembling" on page 52
Ê "Connecting the server to the mains" on page 57
Ê "Switching on the server" on page 58
