RX200 S8
Upgrade and Maintenance Manual 123
Hard disk drives / solid state drives

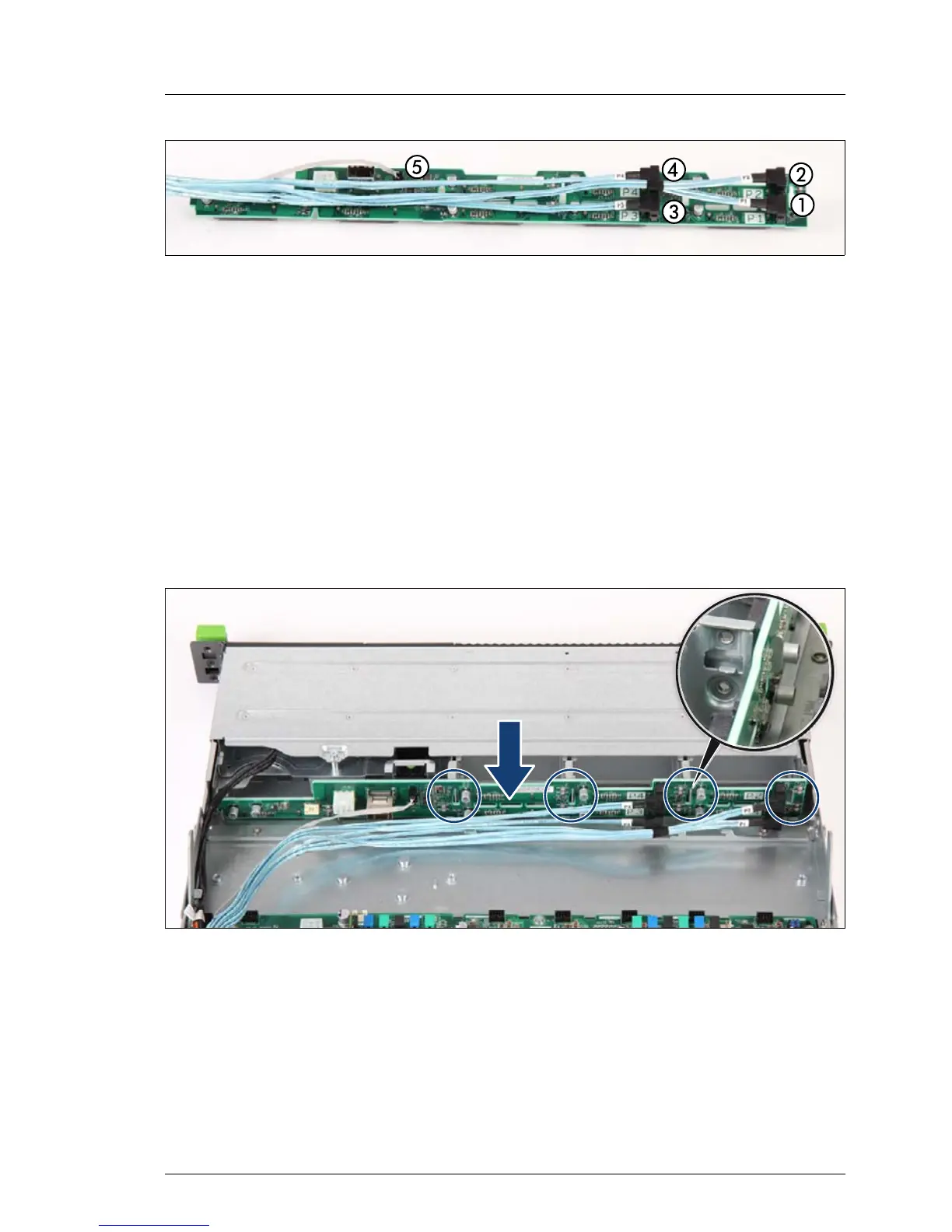

Figure 52: Disconnecting the SAS data cable from the 8xHDDbackplane
Ê Disconnect the SAS data cable from the 8xHDD backplane:
– (1-4) SAS data cable connector P1 - P2 from the corresponding
connectors
– (5) SGPIO connector from connector "CN8"
For the cable plan see section "Cabling" on page 314.
7.6.3 Installing the new 8xHDD backplane
Ê Connect the SAS data cable to the 8xHDD backplane as shown in figure 52.
Figure 53: Installing the 8xHDD backplane
Ê Position the 8xHDD backplane on the hooks.
Ê Push the 8xHDD backplane downward. Make sure that the lower cant of the
8xHDD backplane fits in the guides (see close-up).
V CAUTION!
Ensure that none of the cables are strained or damaged!
