RX200 S8
Upgrade and Maintenance Manual 105
Power supply

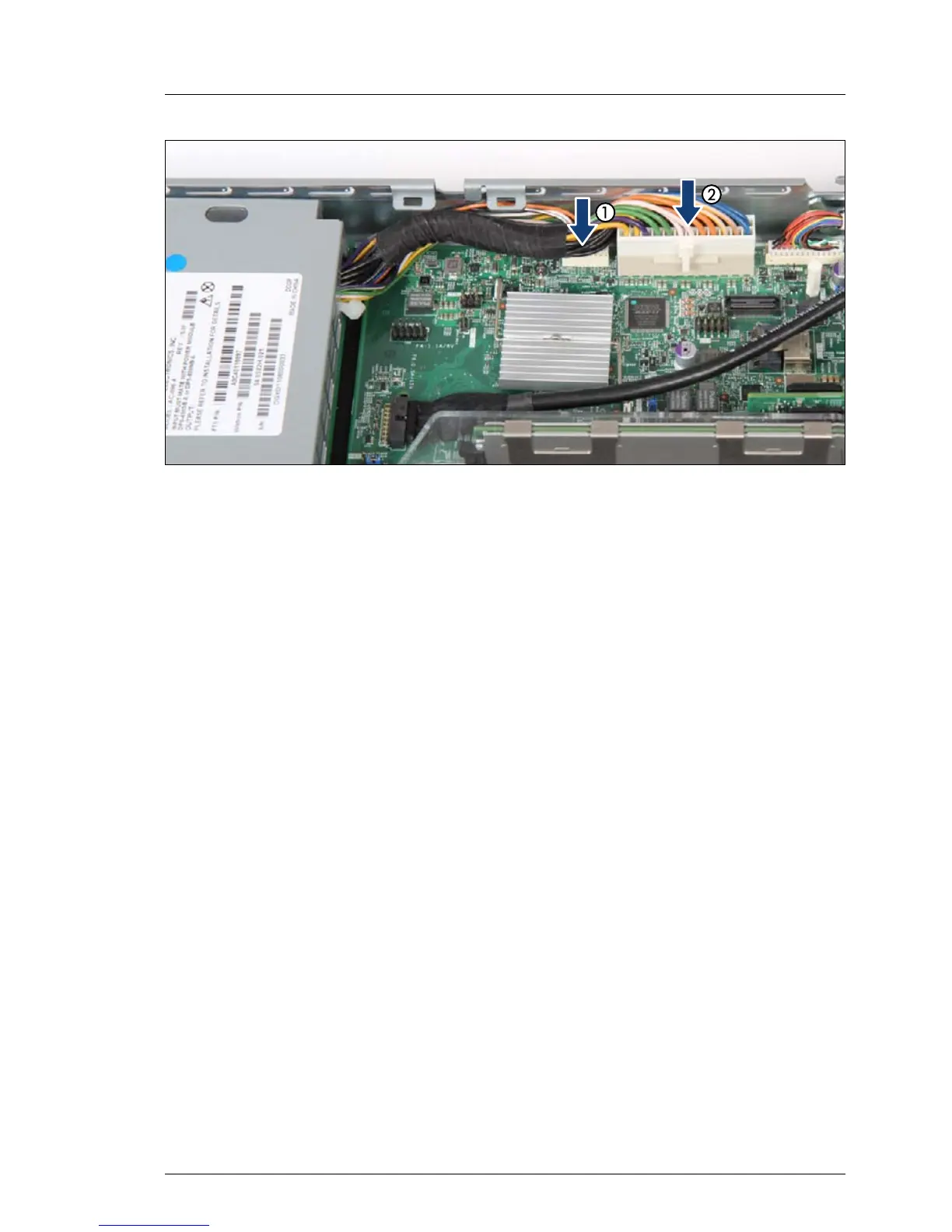

Figure 38: Connecting the power cables
Ê Connect the two power cables to the connector "PWR 2" (1) and connector
"PWR 1" (2) of the system board.
Ê Install all power supply units you removed beforehand as described in
section "Installing the power supply unit" on page 94.
6.5.4 Concluding steps
Perform the following procedures:
Ê "Installing the riser module 3" on page 61
Ê "Reassembling" on page 52
Ê "Connecting the server to the mains" on page 57
Ê "Switching on the server" on page 58
Ê "Enabling BitLocker functionality" on page 83
