298 Upgrade and Maintenance Manual
RX200 S8
System board and components
15.4.3.2 Removing the defective TPM
Ê Remove the TPM as described in section "Removing the TPM" on page 293.
Ê Leave the TPM spacer on the system board when removing the defective
TPM.
15.4.3.3 Installing the new TPM

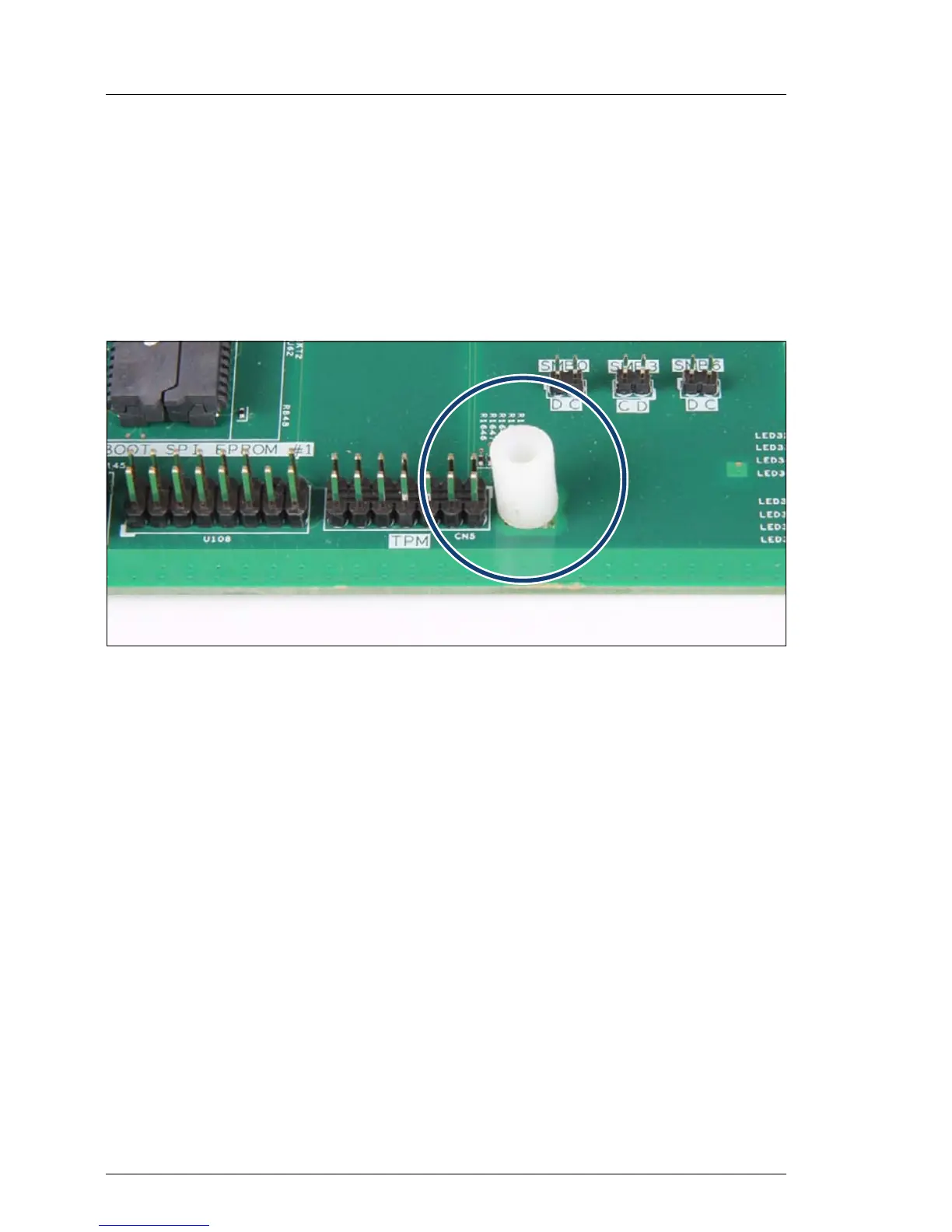

Figure 231: TPM spacer
I The TPM spacer is already present on the system board.
Ê Install the TPM as described in section "Installing the TPM" on page 290.
15.4.3.4 Concluding steps
Ê Reinstall the system board as described in section "Installing the new
system board" on page 309
Ê "Reassembling" on page 52
Ê "Connecting the server to the mains" on page 57
Ê "Switching on the server" on page 58
Ê "Enabling BitLocker functionality" on page 83
I You can find information on configuring the TPM in the corresponding
BIOS Setup Utility reference manual.
