274 Upgrade and Maintenance Manual
RX200 S8
Serial interface
14.2.1 Preliminary steps
Ê "Disabling SVOM boot watchdog functionality" on page 64
Ê "Disabling BitLocker functionality" on page 63
Ê "Shutting down the server" on page 46
Ê "Disconnecting the server from the mains" on page 47
Ê "Getting access to the component" on page 47
14.2.2 Removing the slot cover
Ê Remove the riser module 1 or the riser module2 as described in section
"Handling riser modules" on page 58.
Ê Remove the slot cover of slot 1 or slot 2 as described in section "Removing
the slot cover - slot 1-3" on page 153.
14.2.3 Installing the serial interface

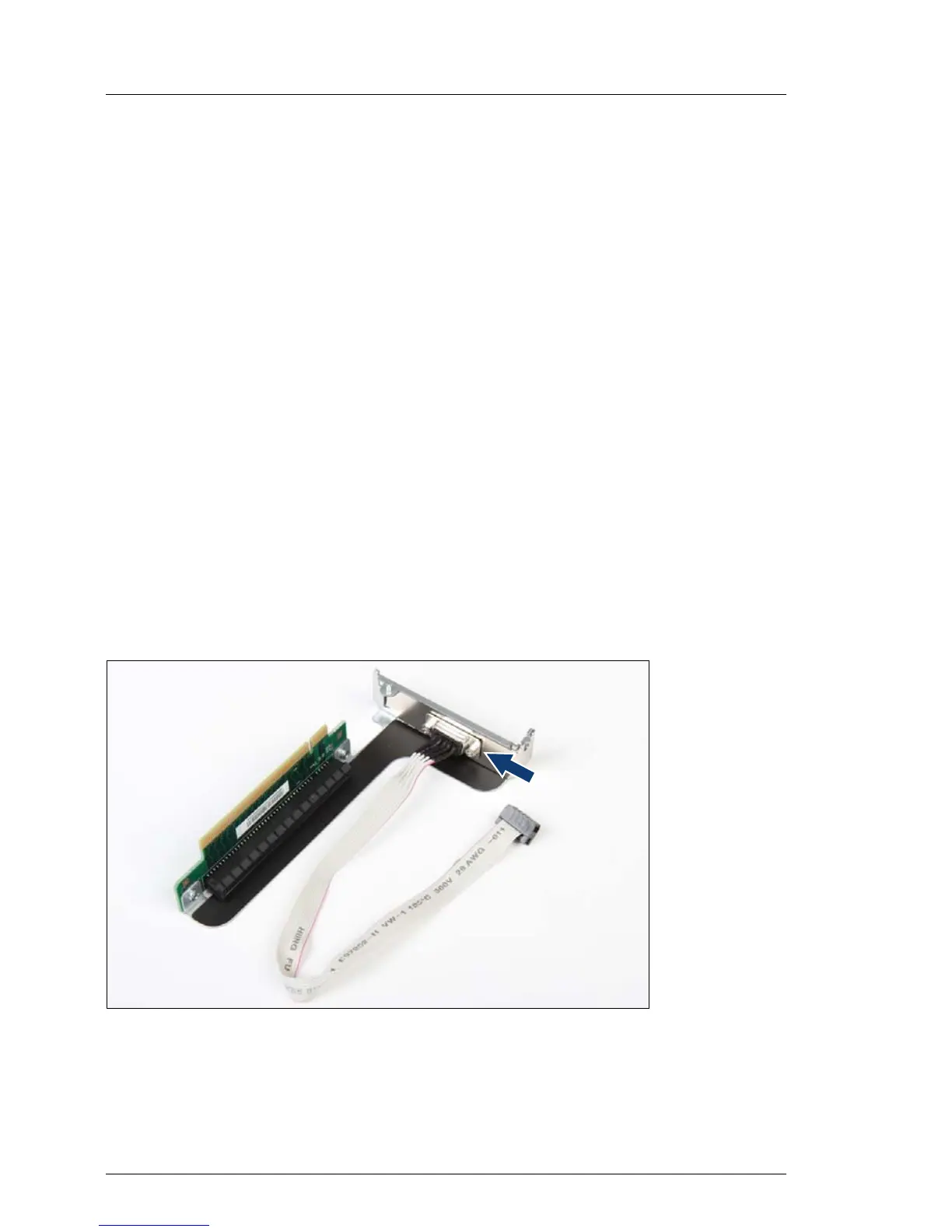

Figure 210: Installing the serial interface - slot 1
Ê Install the serial interface in slot 1 or slot 2.
Ê Install the riser module 1 or the riser module2 as described in section
"Handling riser modules" on page 58.
