118 Upgrade and Maintenance Manual
RX200 S8
Hard disk drives / solid state drives

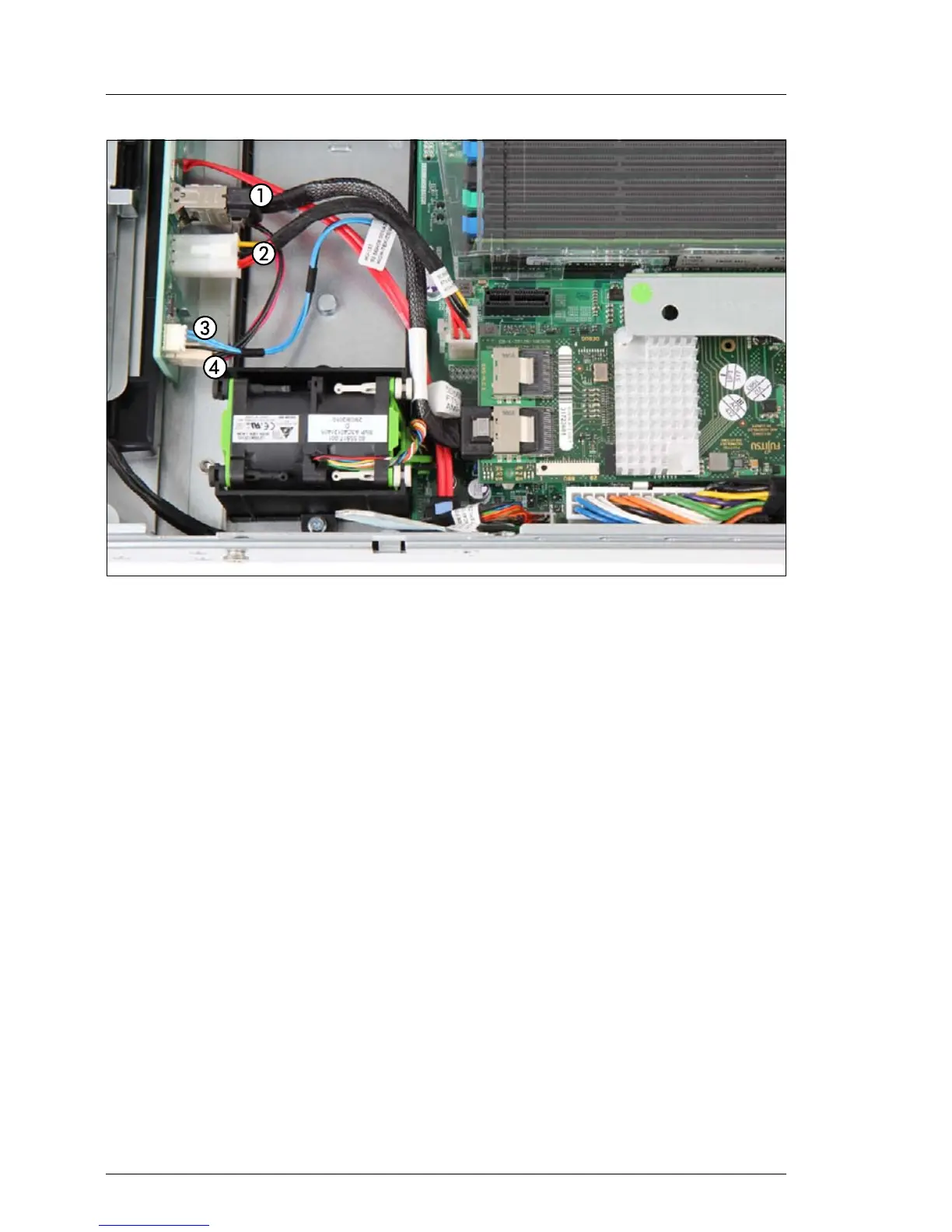

Figure 46: Disconnecting the cables from the 4xHDD backplane
Ê Disconnect the following cables from the 4xHDD backplane:
– (1) SAS/SATA data cable from connector "CN1"
– (2) power cable from connector "CN20"
– (3) I
2
C cable (HDD monitoring) from connector "CN14" (if applicable)
– (4) ODD cable from connector "CN18"
For the cable plan see section "Cabling" on page 314.
