RX200 S8
Upgrade and Maintenance Manual
151
Expansion cards and backu
p units

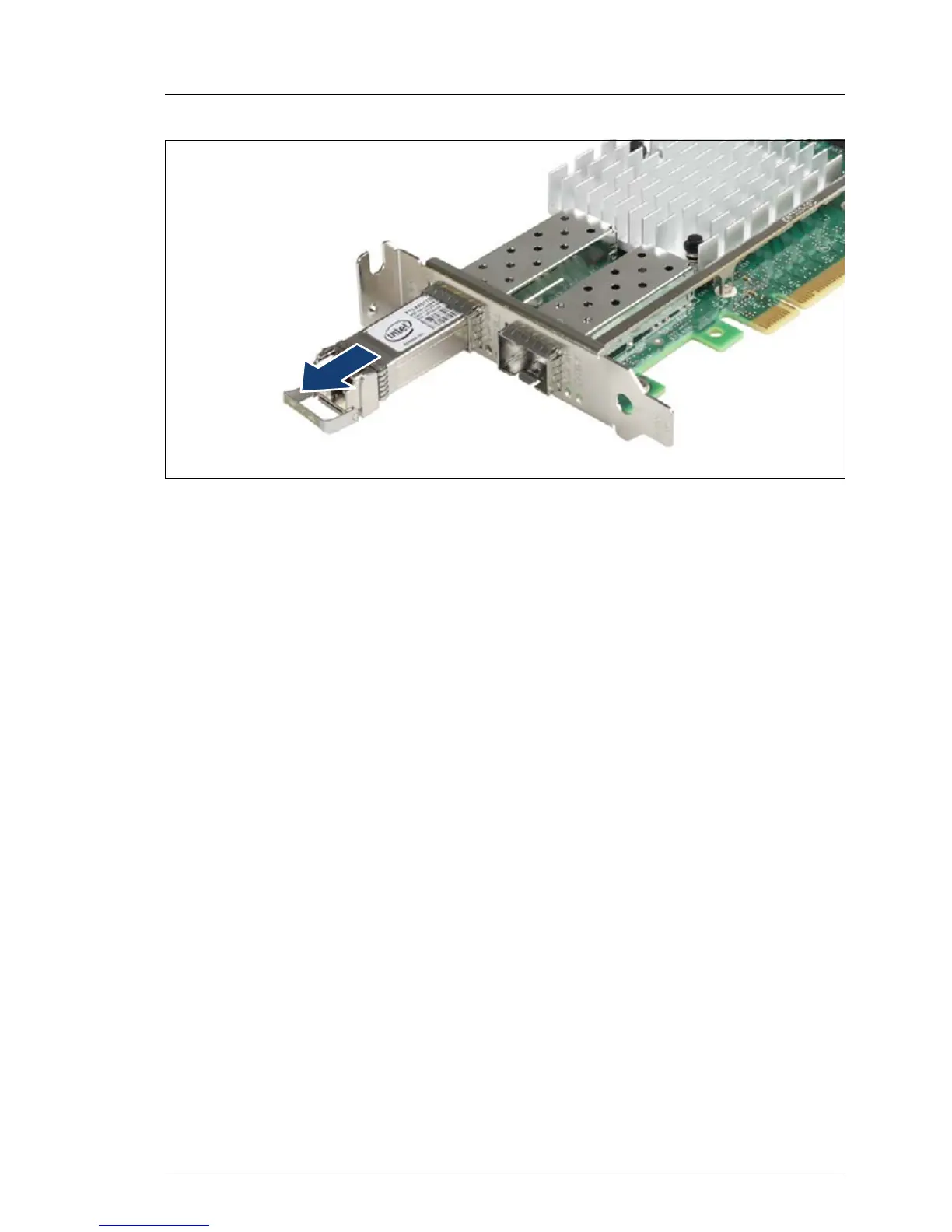

Figure 83: Removing the SFP+ transceiver module
Ê
Pull the SFP+ transceiver module out of its socket connector
.
Ê
Attach the protective optical port plug to the transceiver optical bores.
I
Place the removed SFP+ transceiver module in an antistatic bag or
other protective environment.
150
152
