160 Upgrade and Maintenance Manual
RX200 S8
Expansion cards and backup units

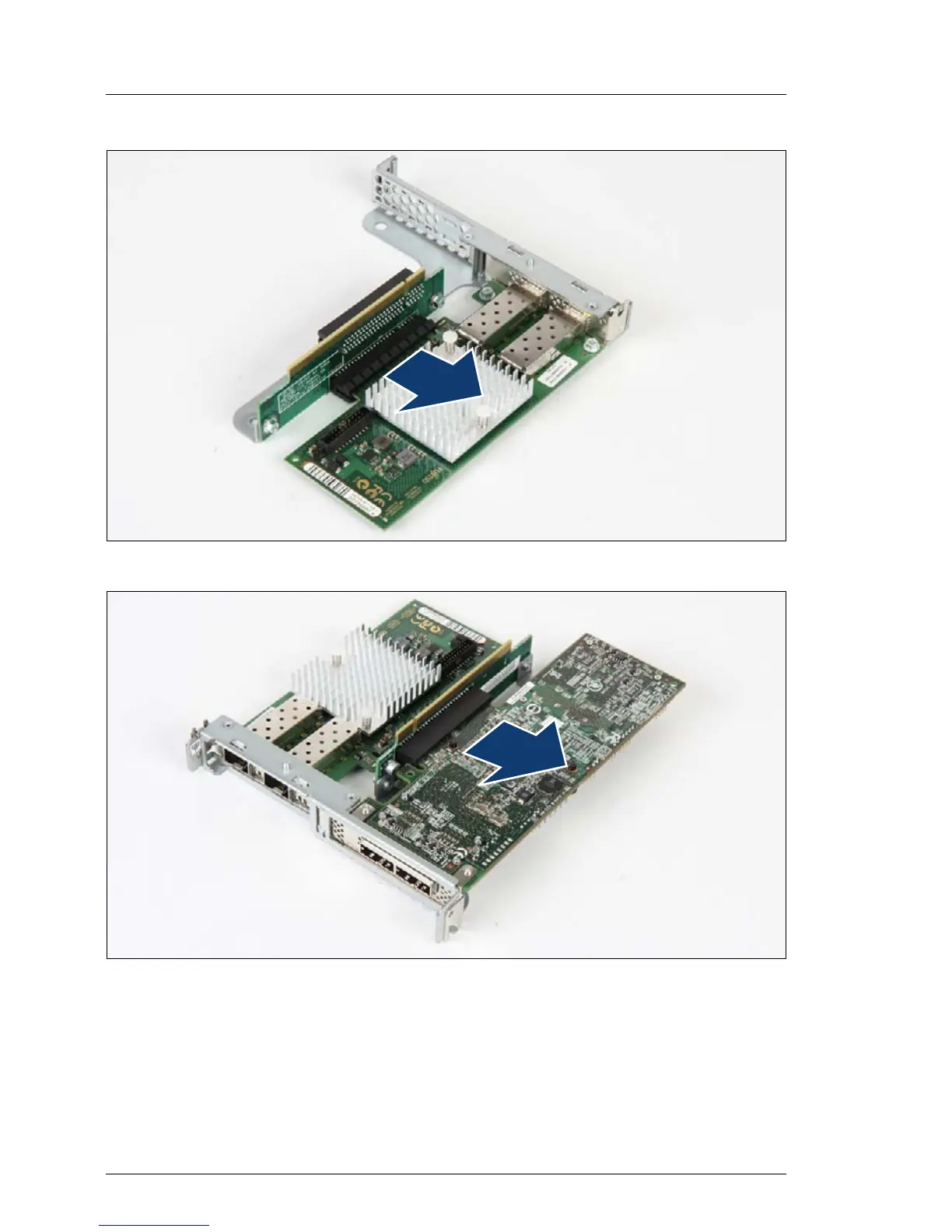

Figure 94: Removing the expansion card- slot 2
Figure 95: Installing the expansion card - slot 3
Ê If necessary, disconnect the cables from the expansion cards.
Ê Pull out the expansion card from the riser card slot.
