RX200 S8
Upgrade and Maintenance Manual 181
Expansion cards and backup units

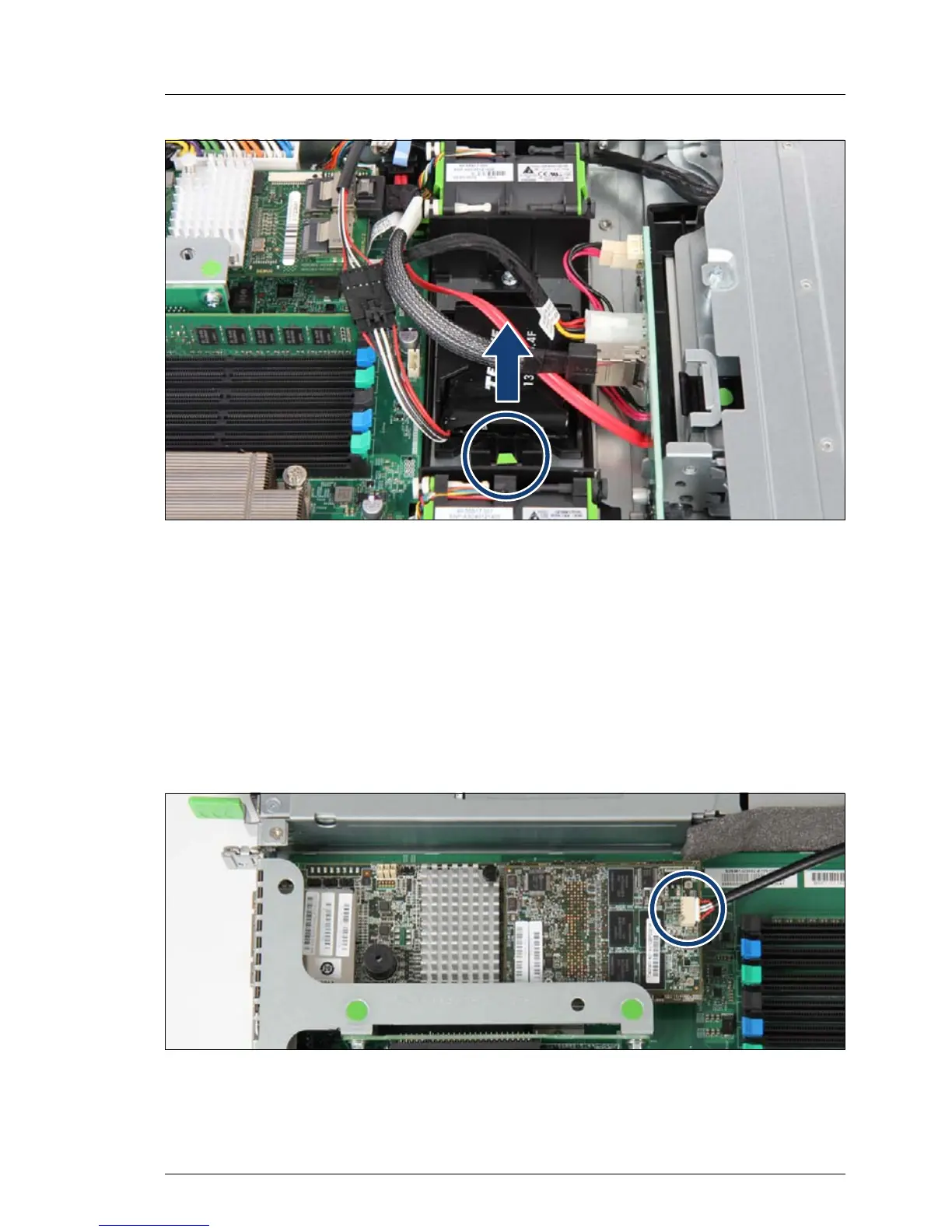

Figure 120: Installing the FBU with the holder
Ê Insert the holder into the chassis so that the three shoulder screw caps on
the chassis floor rest in the wide ends of the keyhole slots on the holder.
Ê Slide the holder in direction of the arrow.
The shoulder screw caps on the chassis floor will lock in the narrow ends of
the keyhole slots on the holder.
Ê Ensure that the locking handle on the holder properly snaps in place (see
circle).
Figure 121: Connecting the FBU cable to the RAID controller
Ê If applicable, install a RAID controller in slot 3 as described in section
"Installing an expansion card - slot 1-3" on page 152.
