218 Upgrade and Maintenance Manual
RX200 S8
Processors

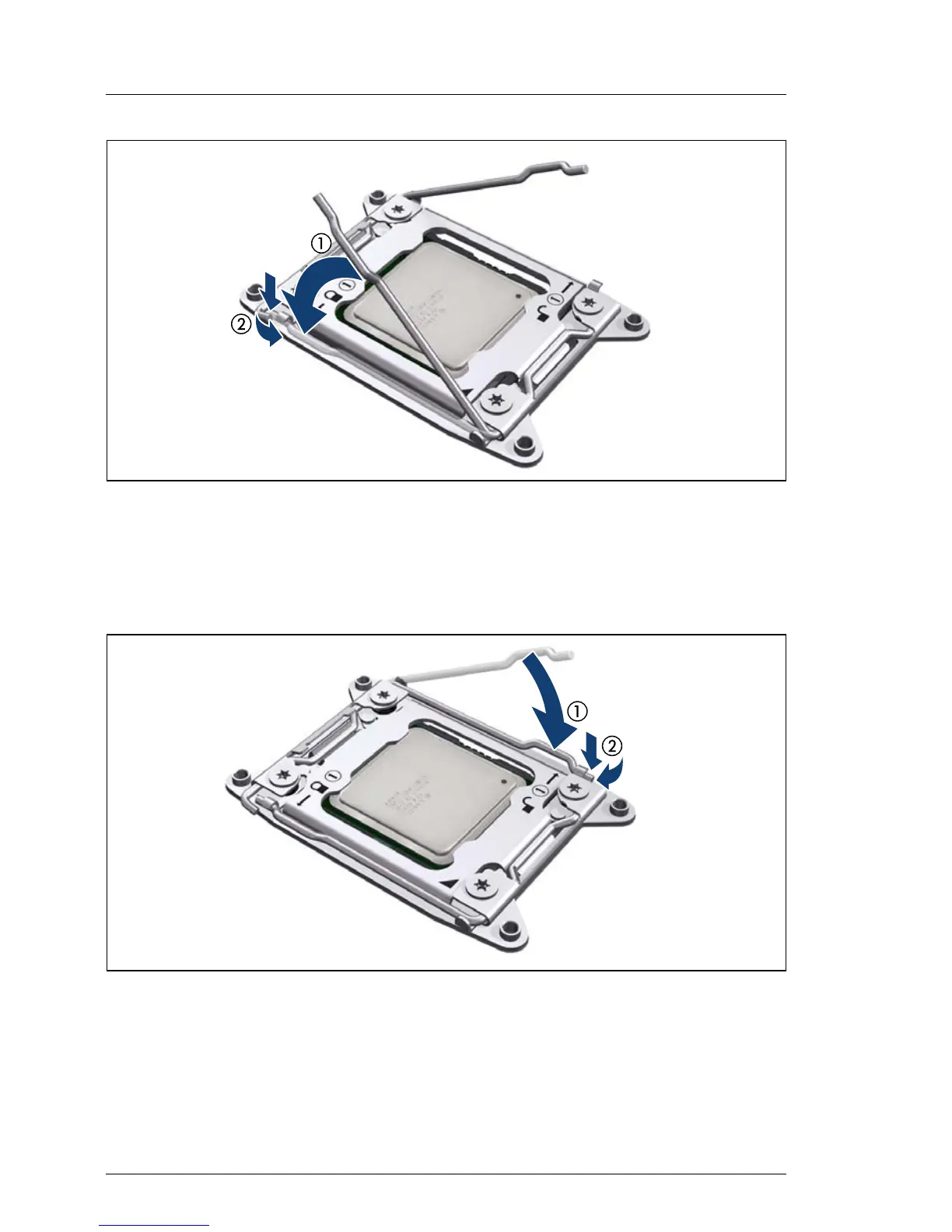

Figure 145: Closing socket release lever 2
Ê Fully close and hold shut the load plate.
Ê Close the socket release lever marked Close 1st (1) and latch it under the
load plate retention tab to lock down the load plate (2).
Figure 146: Closing socket release lever 1
Ê Close the socket release lever marked Open 1st (1) and latch it under the
load plate retention tab (2).
