228 Upgrade and Maintenance Manual
RX200 S8
Processors

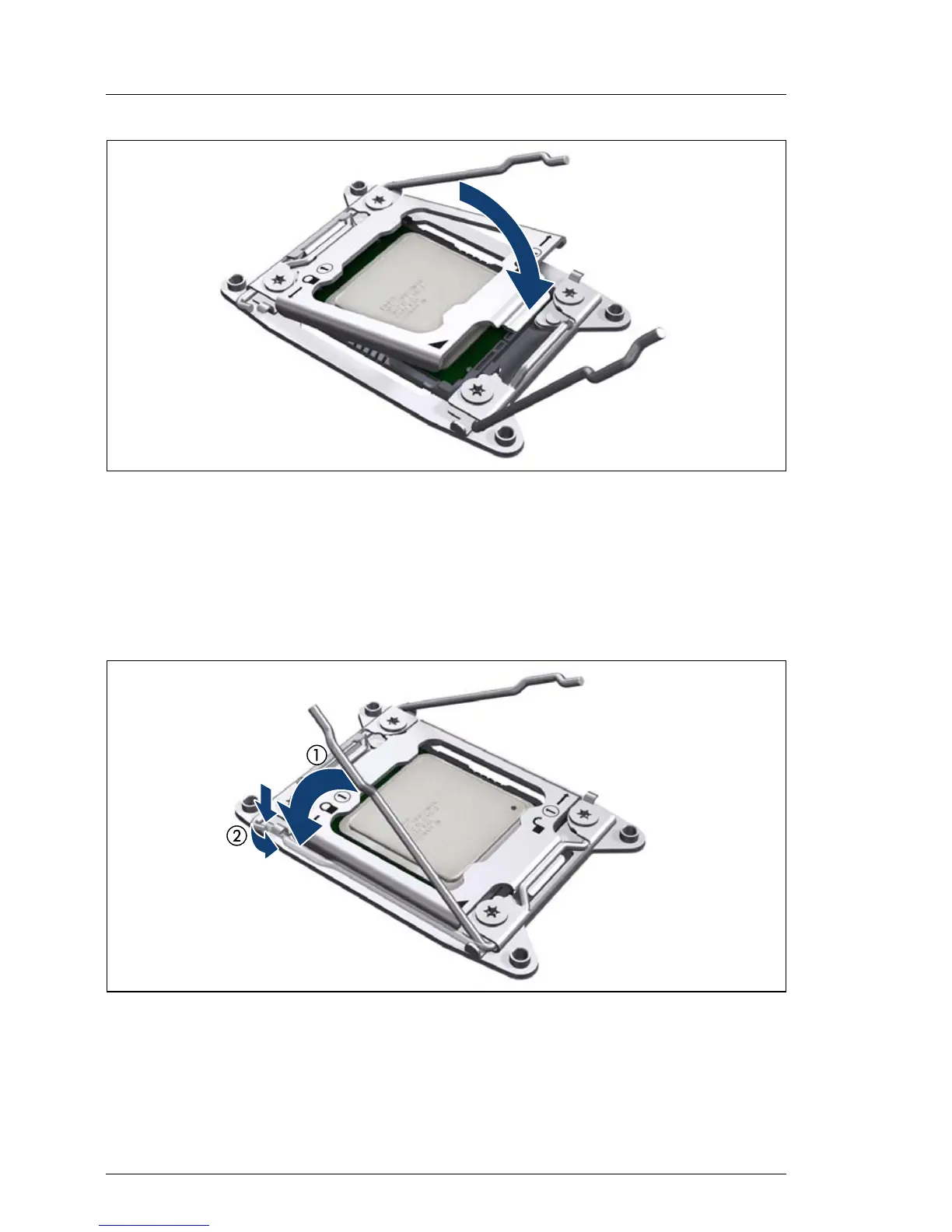

Figure 158: Closing the load plate
Ê Carefully lower the load plate over the processor.
V CAUTION!
Always replace the socket cover if you remove the processor from the
socket!
Figure 159: Closing socket release lever 2
Ê Fully close and hold shut the load plate.
Ê Close the socket release lever marked Close 1st (1) and latch it under the
load plate retention tab to lock down the load plate (2).
