230 Upgrade and Maintenance Manual
RX200 S8
Processors

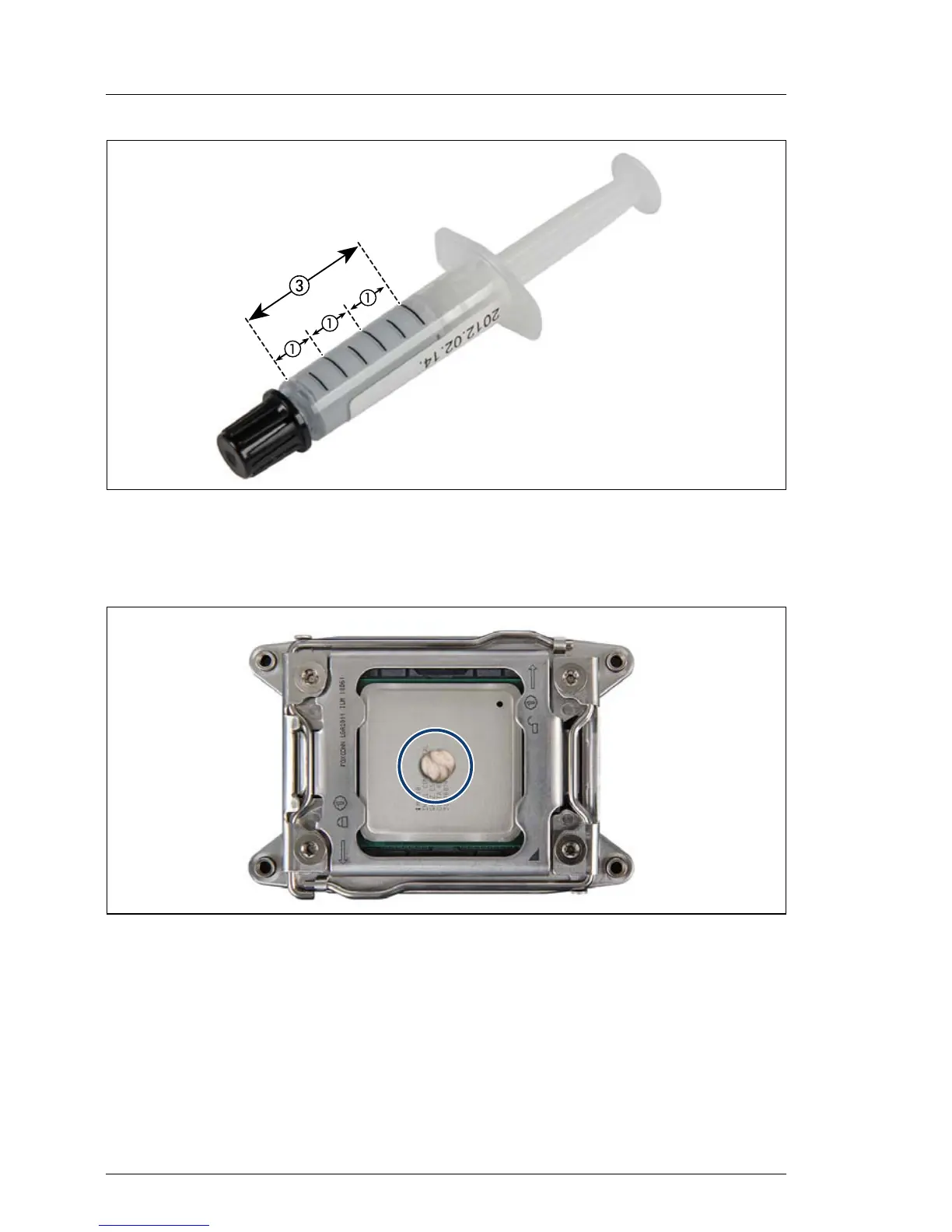

Figure 161: Thermal paste syringe
One thermal compound syringe (FTS-FSP:P304000004) contains thermal
paste for three processors.
Figure 162: Applying the thermal paste
Ê Apply a small point-shaped amount of thermal paste (1.0 gram, see
description above) to the center of the processor surface as shown.
V CAUTION!
Do not mix different types of thermal paste.
