RX200 S8
Upgrade and Maintenance Manual 237
Optical disk drive
Ê Press the lock in direction of the arrow until it disengages (1).
Ê Push the dummy module out of the bay (2).

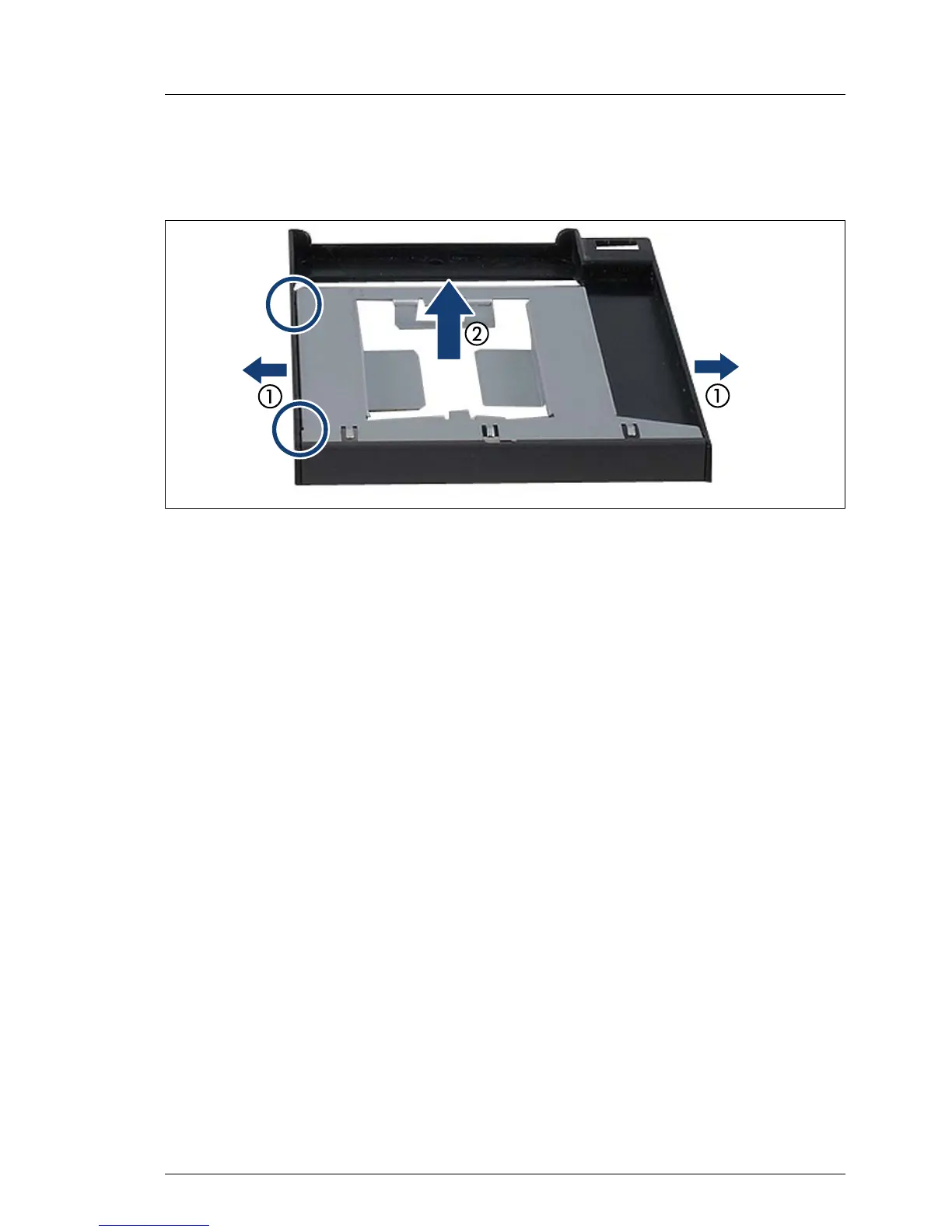

Figure 165: Removing the dummy out of the mounting frame
Ê Pull the mounting frame outward on both sides (1).
Ensure that the pins on the mounting frame disengage with the screw holes
on the dummy (see circles).
Ê Remove the dummy (2).
V CAUTION!
Keep the dummy for future use. If you remove the accessible drive
again and do not replace it with a new one, the dummy must be
reinstalled to comply with EMC regulations and to satisfy cooling
requirements and fire protection measures.
