RX200 S8
Upgrade and Maintenance Manual
257
Front
panel and fron
t VGA/LAN mod
ule

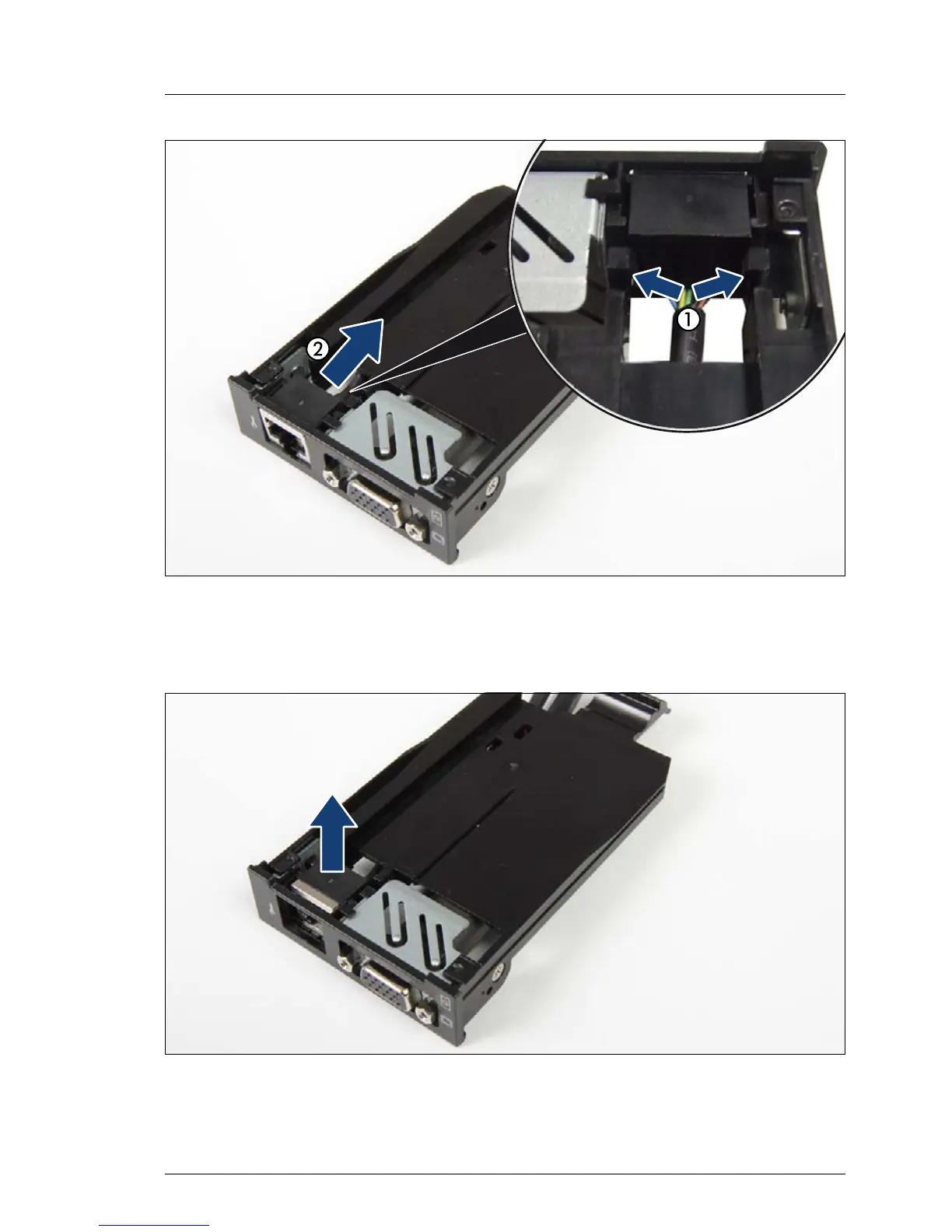

Figure 189: Pushing inward the front LAN connector
Ê
Di
sengage the hooks (1) and simult
aneously push the front LAN connector
inward (2)
.
Figure 190: Pushing upward the front LAN connector
Ê
Push the front LAN connector upward.
256
258
