RX200 S8
Upgrade and Maintenance Manual 269
Front panel and front VGA/LAN module

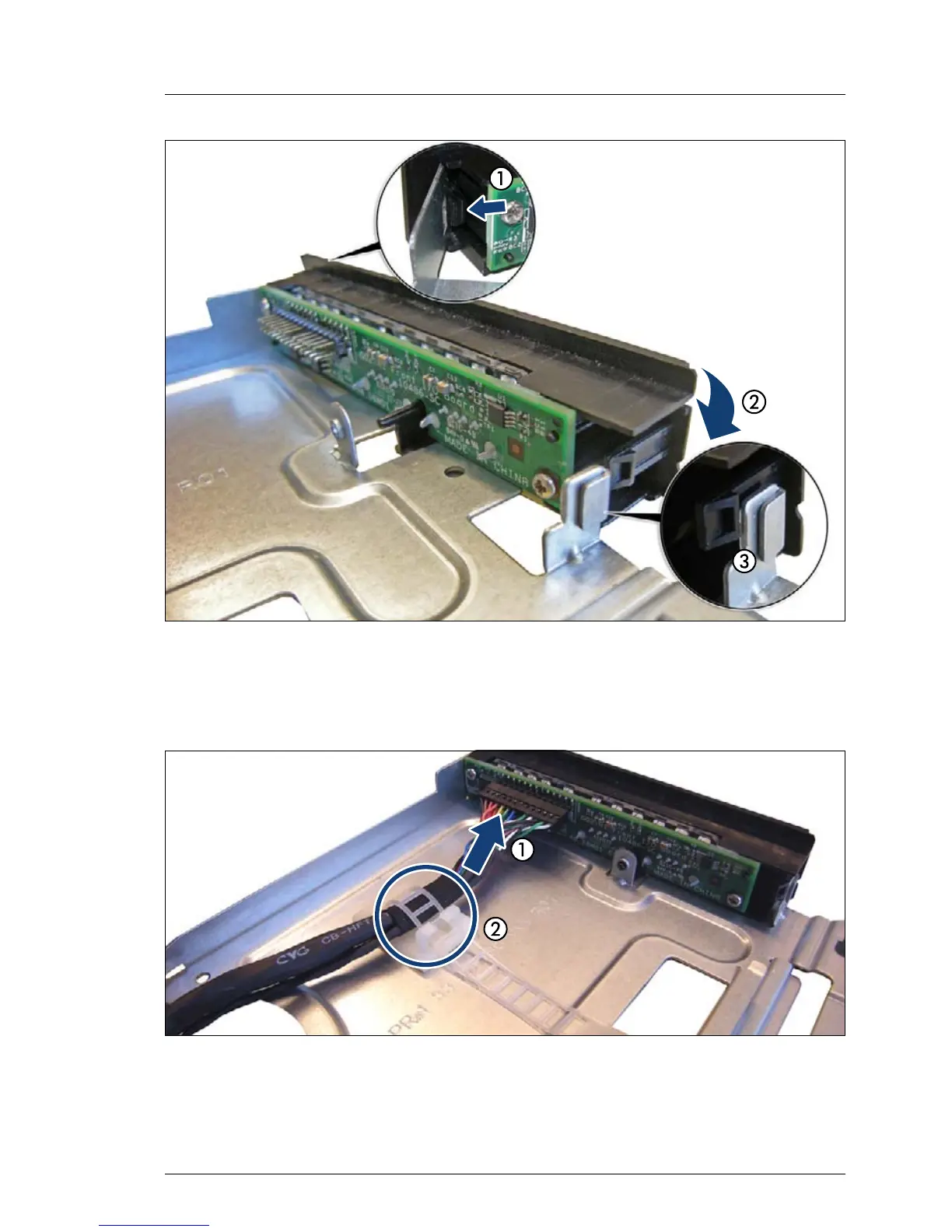

Figure 203: Installing the front panel frame
Ê Hook the front panel frame in on the left side (1).
Ê Swivel the front panel frame inward (2) until the lock clicks in (3).
Figure 204: Connecting the front panel cable
Ê Connect the front panel cable (1).
Ê Close the cable clamp, if applicable (2).
