RX200 S8
Upgrade and Maintenance Manual 55
Basic hardware procedures

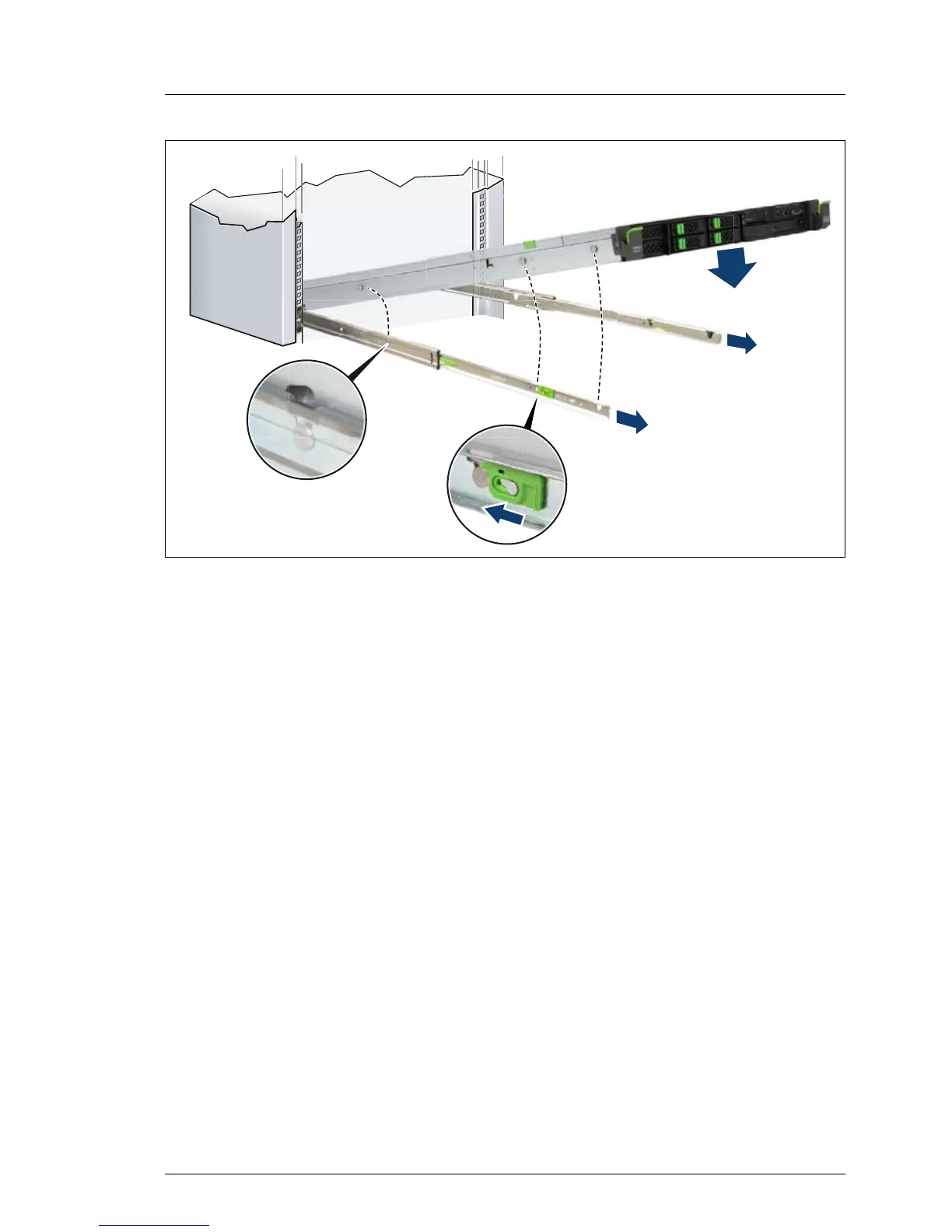

Figure 10: Mounting the server onto the rack rails
Ê Fully extend the telescopic rails until they lock in place (1).
I The telescopic rails must click into place so that they can no longer
be moved.
Ê At a slight angle, lower the server onto the rear mounting point on the
telescopic rails (2).
Ê Fold down the server, while pressing the rail to the server side (3). Ensure
that all six rack mounting bolts are properly seated in the mounting points on
the telescopic rails and that the locking bars engage (4).
/
