Power supply units
6.1.1 Power supply unit configurations

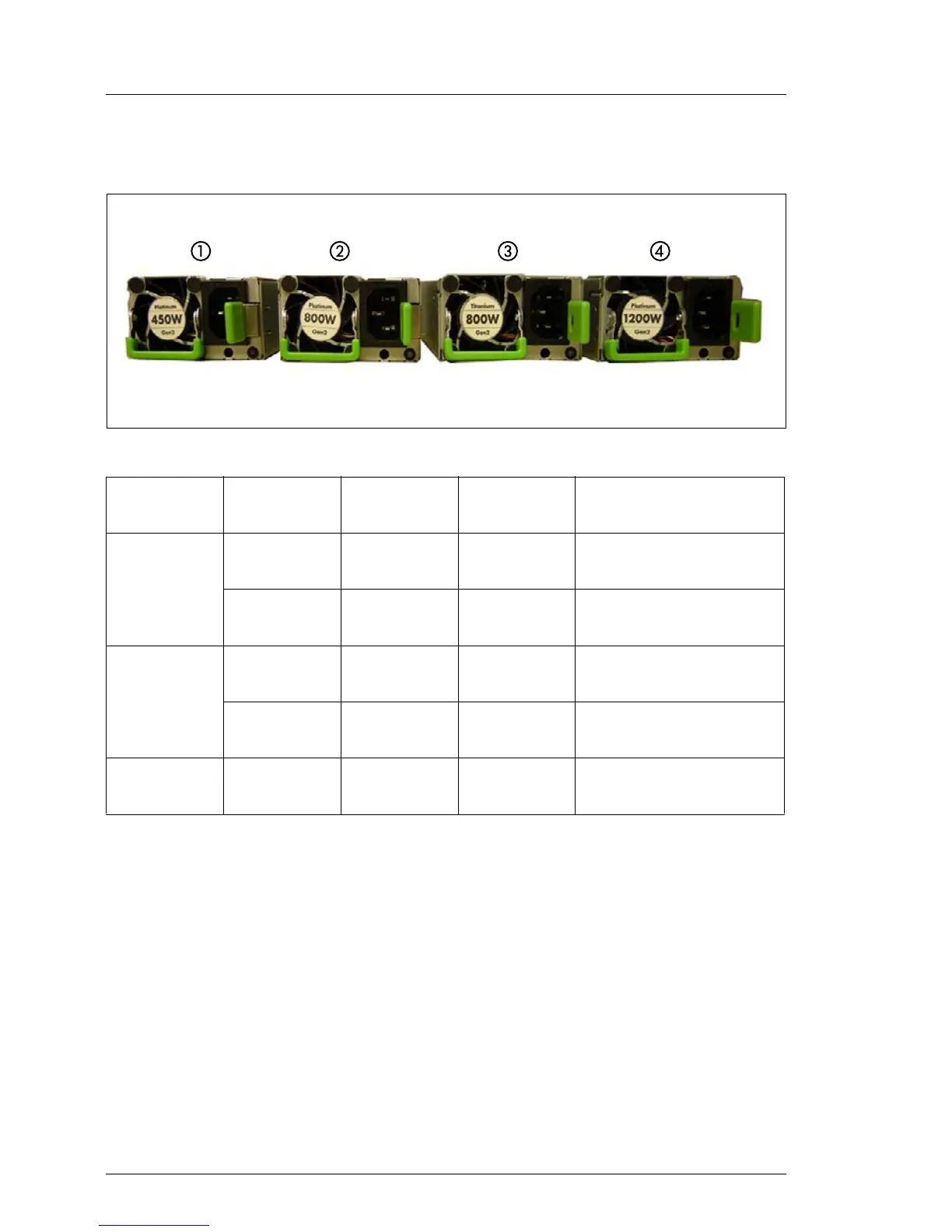

Figure 13: Hot-plug power supply units
I All different hot-plug power supply units are to install, to remove or to
replace in the same way.
6.1.2 Assembly rules
– Mixed assembly of hot-plug power supply units from different power
classes(e.g. class 1, class 2, or class 3) within a system is not released.
– Mixing of Platinum and Titanium PSU within same class (e.g. class 2) within
a system is not released.
Power
class
Number in
figure
Power item Part Number
1
1 450 W Platinum A3C40175929 /
S26113-E575-V53
1 450 W Platinum A3C40172099 /
S26113-E575-V70
2
2 800 W Platinum A3C40175928 /
S26113-E574-V53
3 800 W Titanium A3C40169522 /
S26113-E615-V50
3 4 1200 W Platinum A3C40170546 /
S26113-E616-V50
