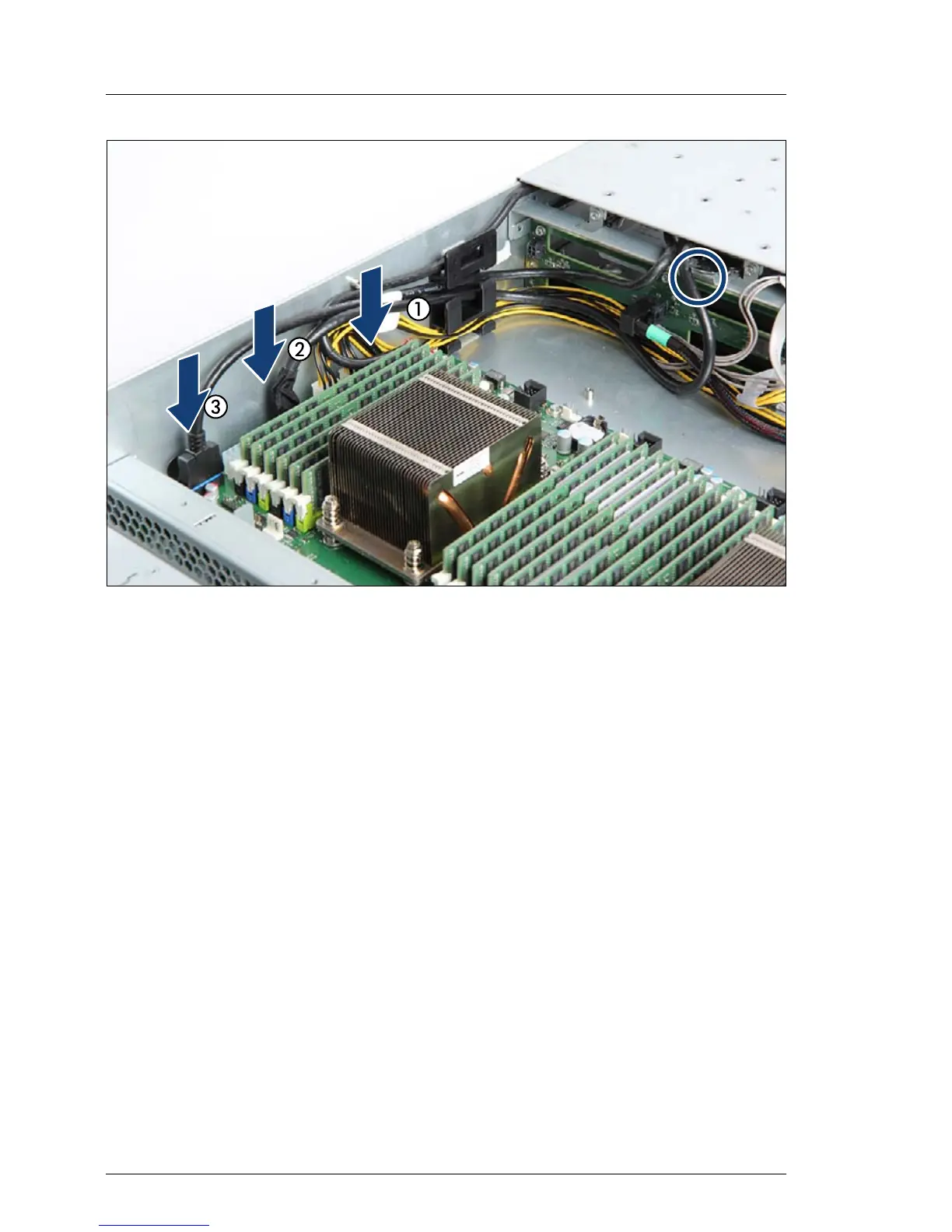

Figure 228: Connecting the front panel cable
Ê Connect the front panel cable to the system board (1).
Ê If applicable, connect the front VGA cable from the system board (2).
Ê If applicable, connect the front USB3.0 cable from the system board (3).
Ê Carefully pull the front panel module into its bay and regard that the locking
mechanism snaps in (see circle).
V CAUTION!
Ensure that none of the cables are strained or damaged.
13.1.1.4 Concluding steps
Ê "Installing the fan box" on page 156
Ê "Reassembling" on page 61
Ê "Connecting the server to the power source" on page 66
Ê "Switching on the server" on page 67
Ê "Verifying system information backup / restore" on page 79
