Fujitsu PRIMERGY RX2540 M1 - Removing the FBU from the Holder; Installing a New FBU; Concluding Steps

RX2540 M1 Upgrade and Maintenance Manual 249
Expansion cards and backup units
9.7.4.4 Removing the FBU from the holder

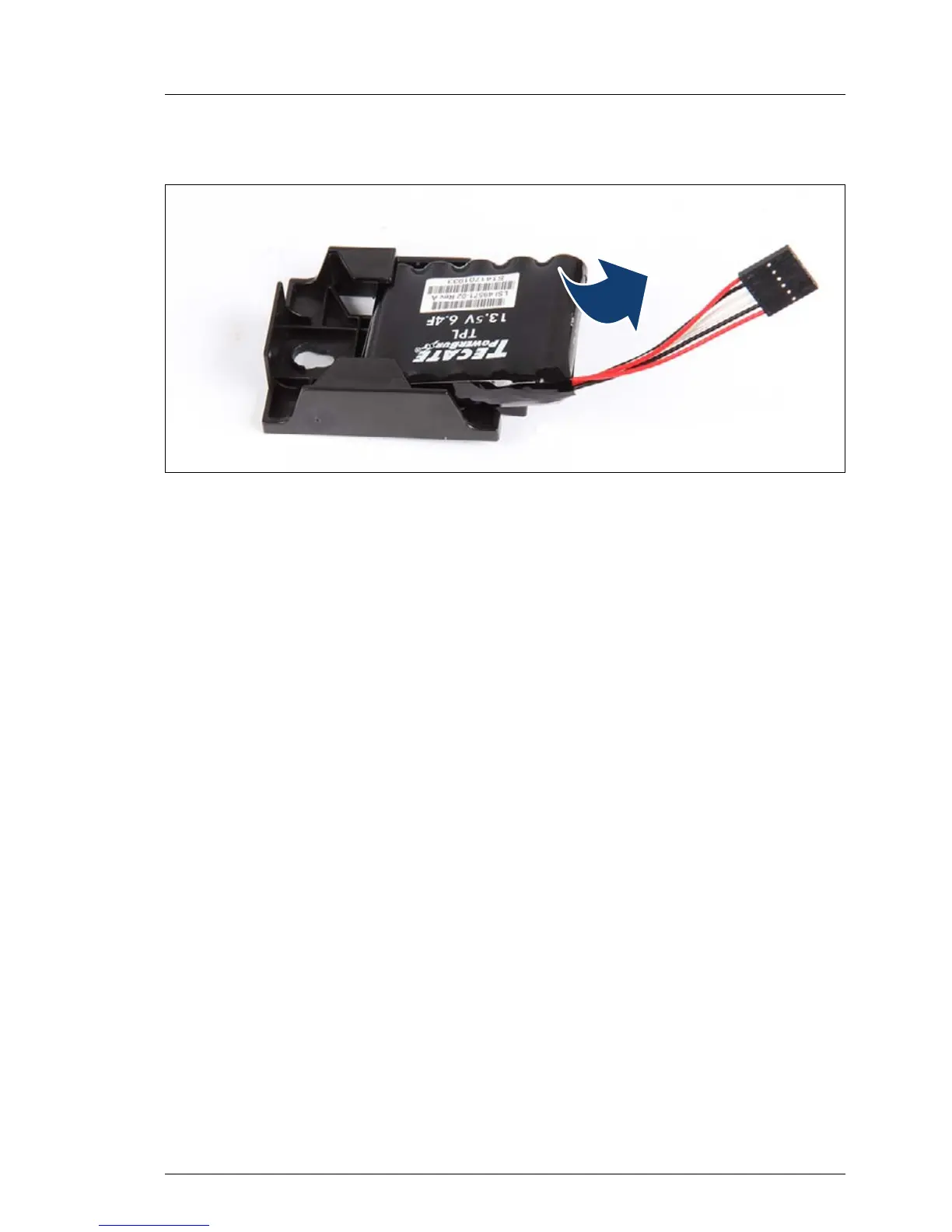

Figure 151: Removing the FBU from the holder
Ê Pull the FBU at a slight angle out of the holder.
9.7.4.5 Installing a new FBU
Ê "Connecting the FBU to the RAID controller" on page 241
Ê "Preparing the FBU" on page 241
Ê "Installing the FBU holder onto the air duct" on page 243
9.7.4.6 Concluding steps
Ê "Reassembling" on page 61
Ê "Connecting the server to the power source" on page 66
Ê "Switching on the server" on page 67
Ê If applicable, "Updating RAID controller firmware" on page 81.
Ê "Enabling SVOM boot watchdog functionality" on page 86
