9.5.1.2 Installing a riser card (HL)

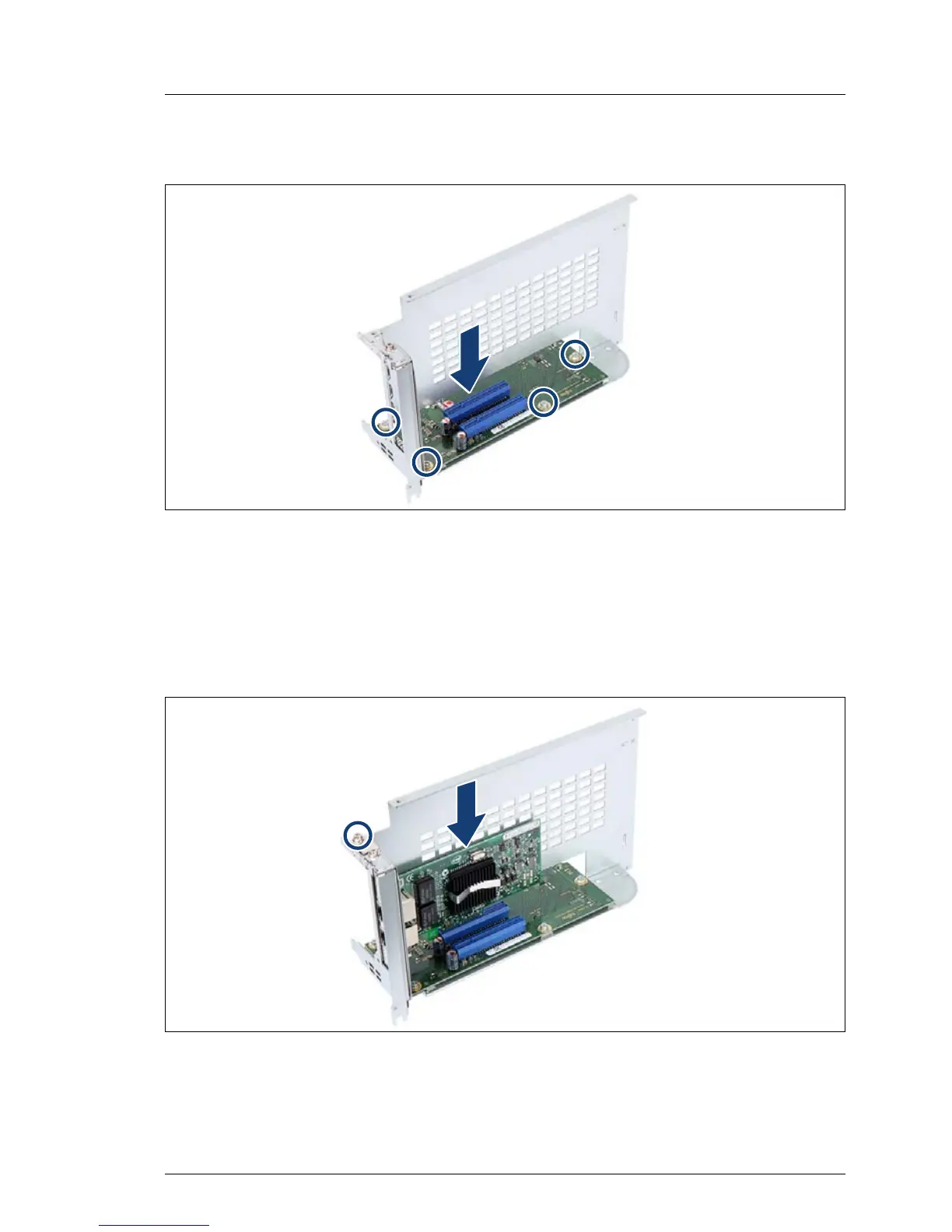

Figure 92: Installing a riser card
Ê Insert the riser card in the holder.
Ê Fasten the riser card with four screws (see circles).
9.5.1.3 Installing an expansion card in a riser module (HL)
Figure 93: Installing an expansion card in a riser module
Ê Carefully insert the expansion card into the desired PCI slot and press down
firmly until it is fully seated in the slot.
