Fujitsu PRIMERGY RX2540 M1 - Preparing the FBU; Connecting the FBU to the RAID Controller

RX2540 M1 Upgrade and Maintenance Manual 241
Expansion cards and backup units
9.7.2.3 Preparing the FBU

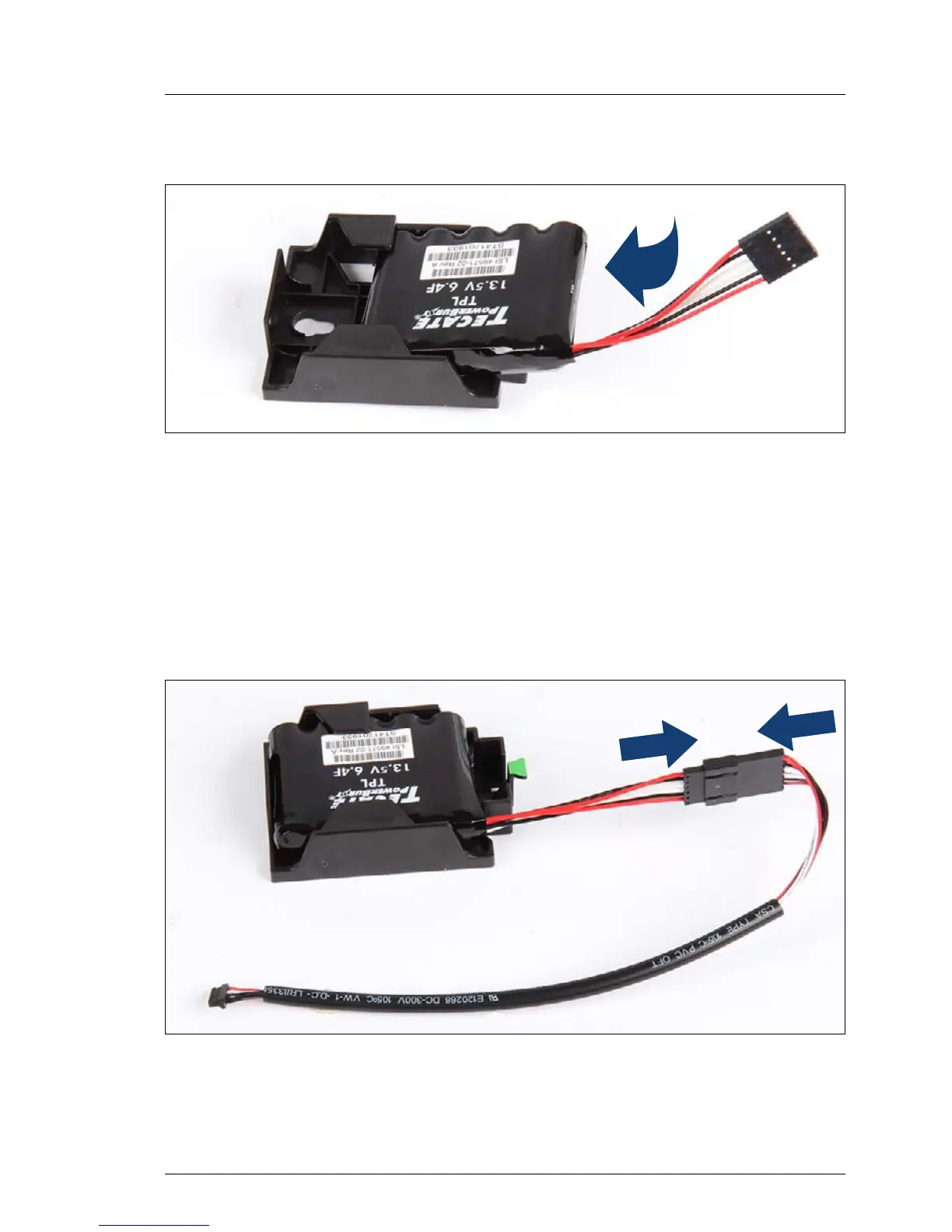

Figure 143: Installing the FBU in the FBU holder
Ê At a slight angle, fit the FBU under both retaining brackets of the FBU holder
as shown.
Ê Push in the FBU until it locks in place.
Ê Ensure that the FBU is properly seated in the holder.
9.7.2.4 Connecting the FBU to the RAID controller
Figure 144: Connecting the FBU adapter cable to the FBU
Ê Connect the cable end on the FBU module to the FBU adapter cable as
shown.
