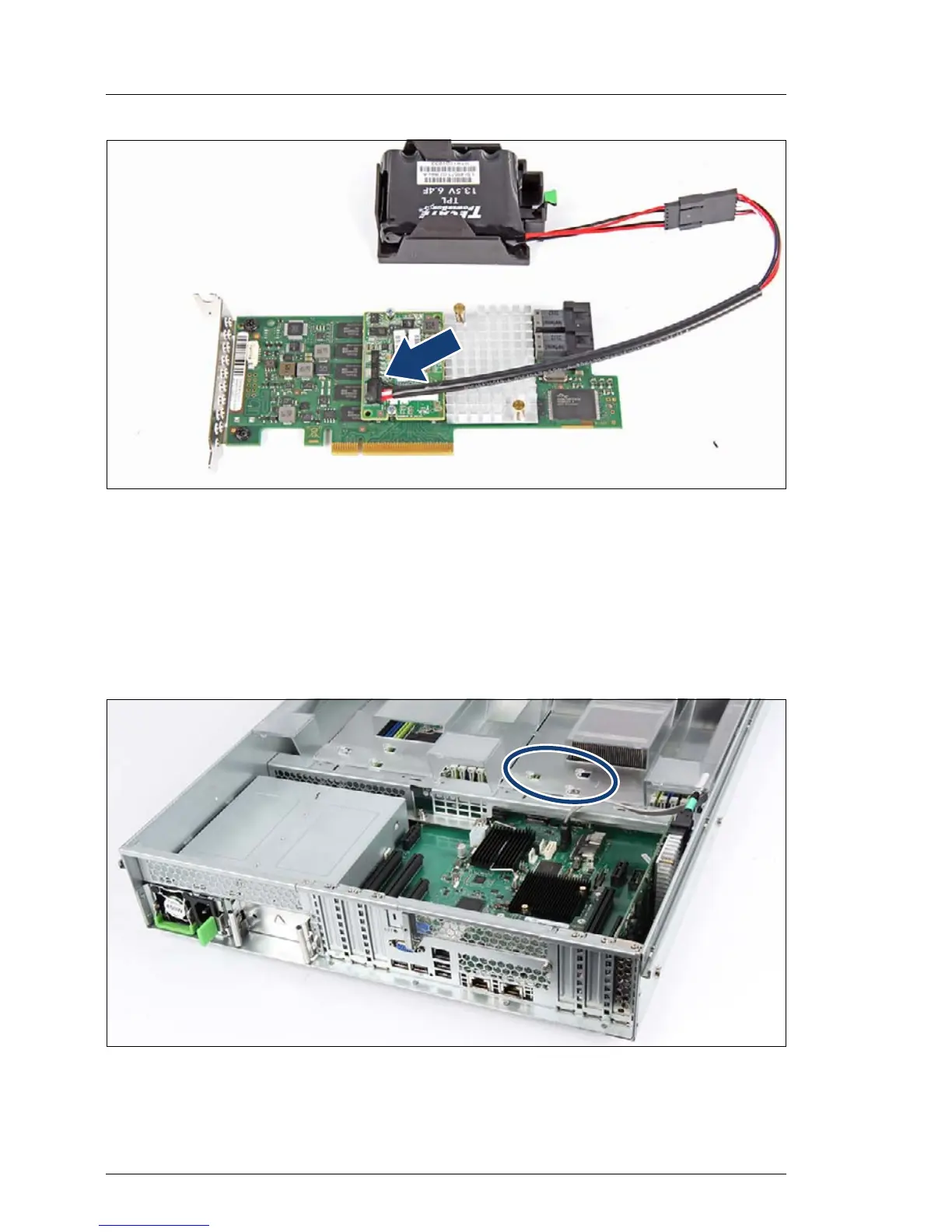

Figure 145: Connecting the FBU adapter cable to the FBU
Ê Connect the FBU adapter cable to the connector on TFM as shown.
Ê Install the RAID controller see section "Installing expansion cards" on
page 178.
9.7.2.5 Installing the FBU holder onto the air duct
Figure 146: Installing the FBU (A)
I Note the positions of the fixation bolts on the air duct and keyhole slots
on the FBU holder.
