Fujitsu PRIMERGY RX2540 M1 - Removing the Rear Cover (Riser Module 2)

198 Upgrade and Maintenance Manual RX2540 M1
Expansion cards and backup units
9.5.3.5 Removing the rear cover (riser module 2)

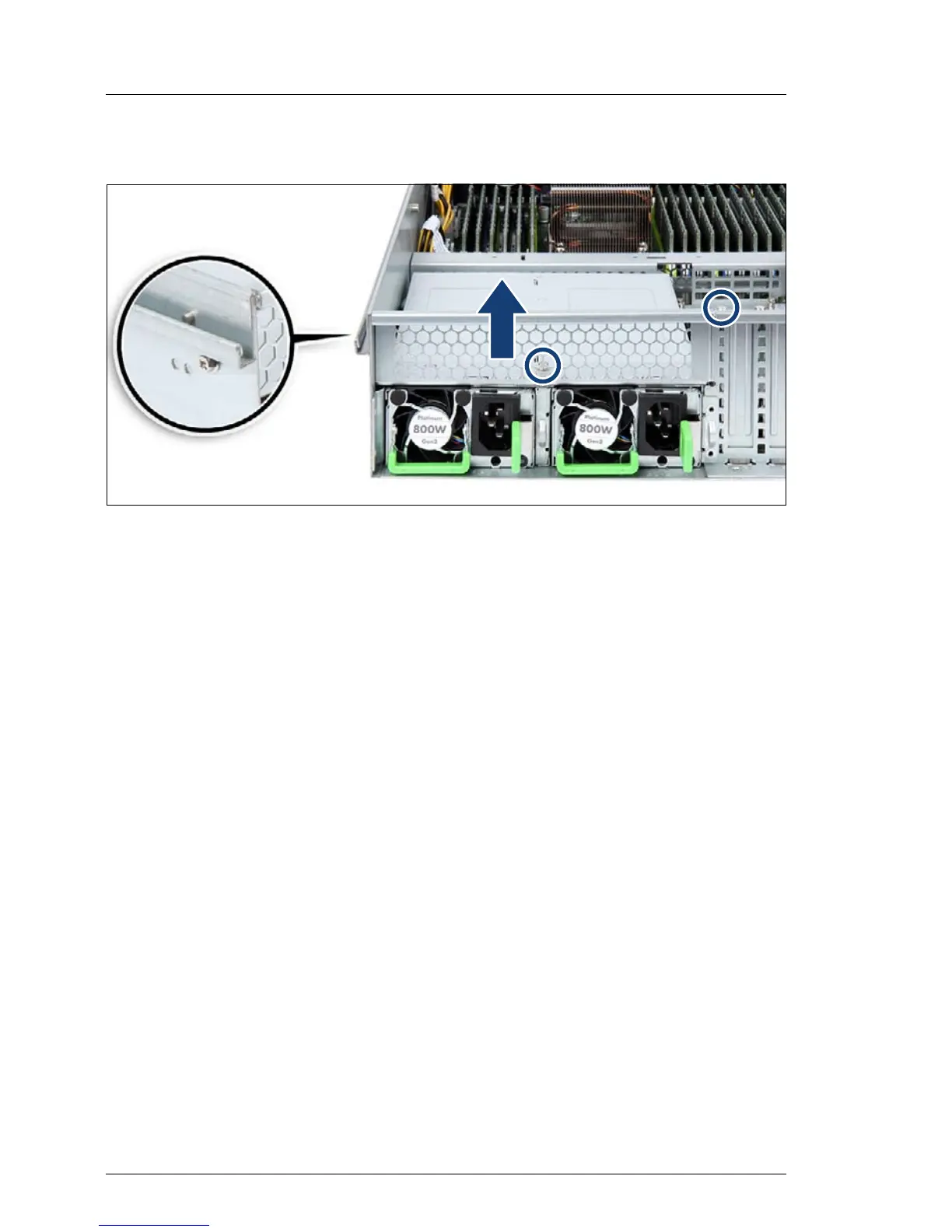

Figure 104: Removing the rear cover
Ê Remove three screw (see circles).
Ê Remove the rear cover.
V CAUTION!
Keep the rear cover for further use.
Always replace rear covers into unused installation locations to
comply with applicable EMC regulations and satisfy cooling
requirements.
