RX2540 M1 Upgrade and Maintenance Manual 357
Front panel and external front connectors
13.5.1.1 Removing the front panel module from RMB

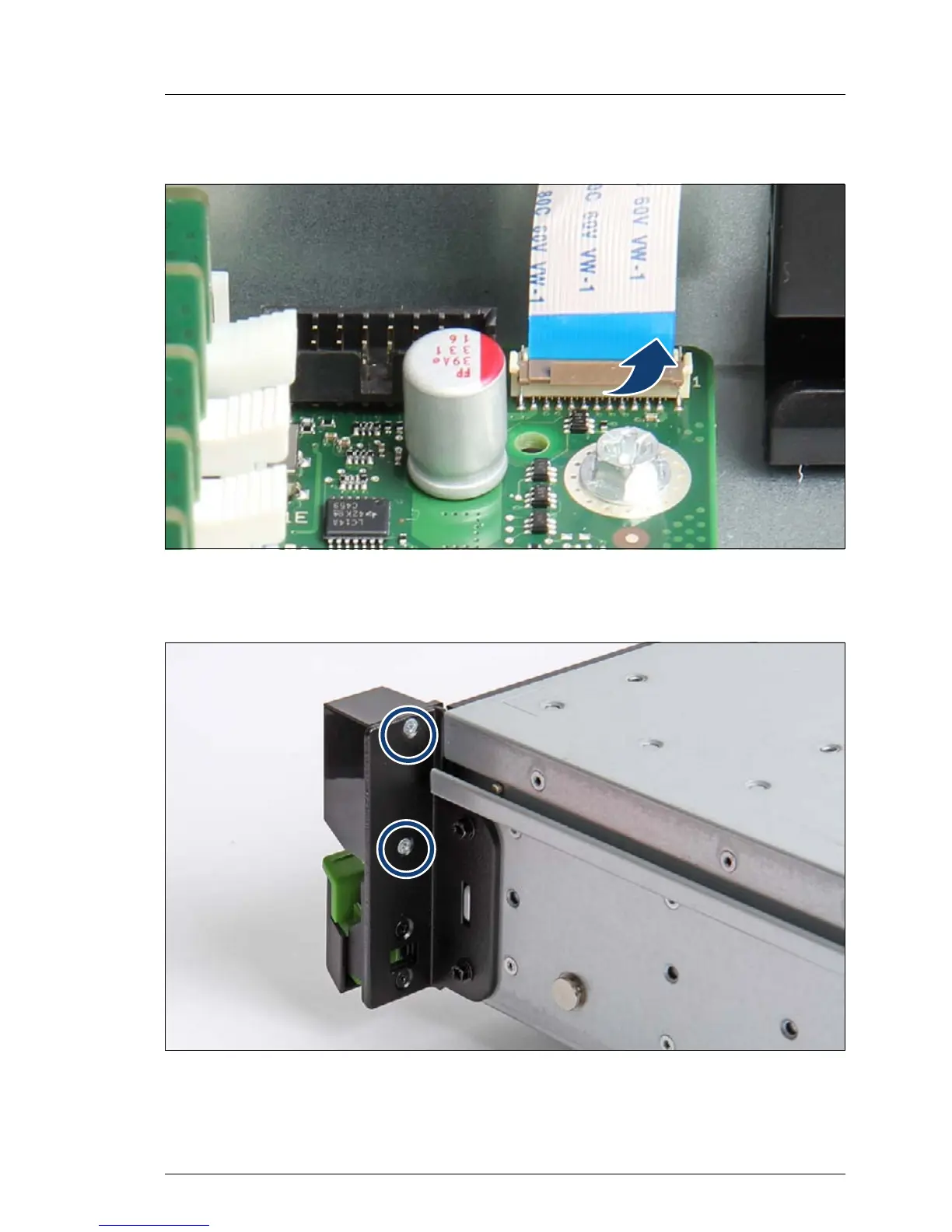

Figure 240: Disconnecting the front panel cable
Ê Disconnect the front panel cable from the system board.
Figure 241: Removing the screws
Ê Remove the two screws.
