Fujitsu PRIMERGY RX2540 M1 - Installing the 4 X 3.5-Inch HDD SAS Backplane 2

RX2540 M1 Upgrade and Maintenance Manual 131
Hard disk drives / solid state drives

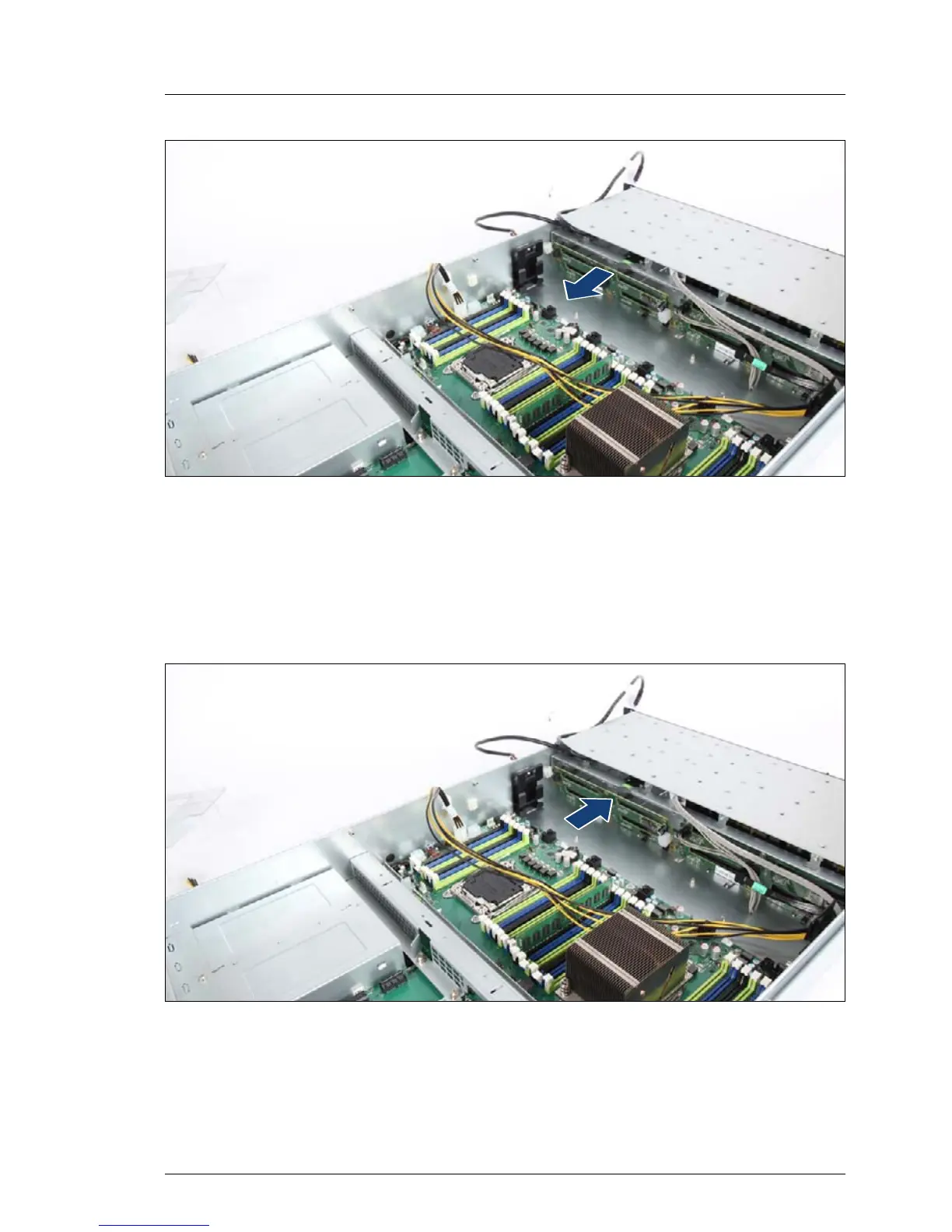

Figure 39: Removing the 4x 3.5-inch HDD SAS backplane 2
Ê Remove the 4x 3.5-inch HDD SAS backplane 2.
I Take care that the OOB connector will not be damaged!
7.3.1.5 Installing the 4x 3.5-inch HDD SAS backplane 2
Figure 40: Installing the 3.5-inch HDD SAS backplane 2
Ê At a slight angle insert the 3.5-inch HDD SAS backplane 2 between the
punching and the centering pin. See section "Installing the 4x 3.5-inch HDD
SAS backplane 1" on page 128.
