122 Upgrade and Maintenance Manual RX2540 M1
Hard disk drives / solid state drives
7.2.4.3 Installing a 3.5-inch HDD module
Ê "Installing 3.5-inch HDD modules" on page 115
7.2.4.4 Concluding steps
Ê "Performing a RAID array rebuild" on page 93
7.2.5 2.5-inch HDDS / SSD in a 3.5-inch installation
frame
I In order to use 2.5-inch HDD / SSD, you can install a 2.5-inch
HDD / SSD in the 3.5-inch installation frame.
7.2.5.1 Installing a 2.5-inch HDD / SSD into a 3.5-inch installation frame
I In order to use 2.5-inch HDD / SSD, you can install a 2.5-inch
HDD / SSD in the 3.5-inch installation frame.

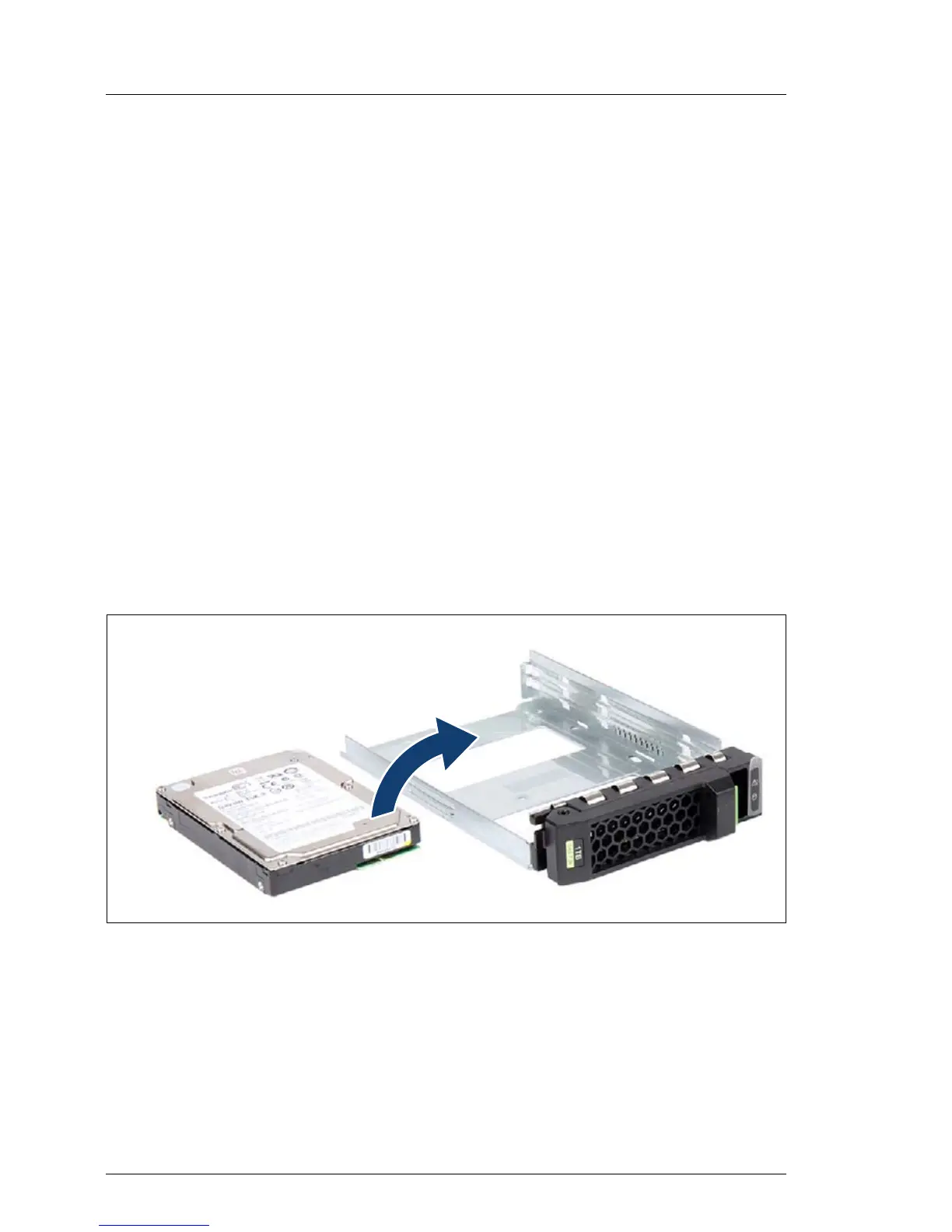

Figure 27: 2.5-inch HDD module and 3.5-inch installation frame
Ê Lay the 2.5-inch HDD into the 3.5-inch HDD installation frame as shown.
