Fujitsu PRIMERGY RX2540 M1 - Removing an Expansion Card (HL)

RX2540 M1 Upgrade and Maintenance Manual 203
Expansion cards and backup units

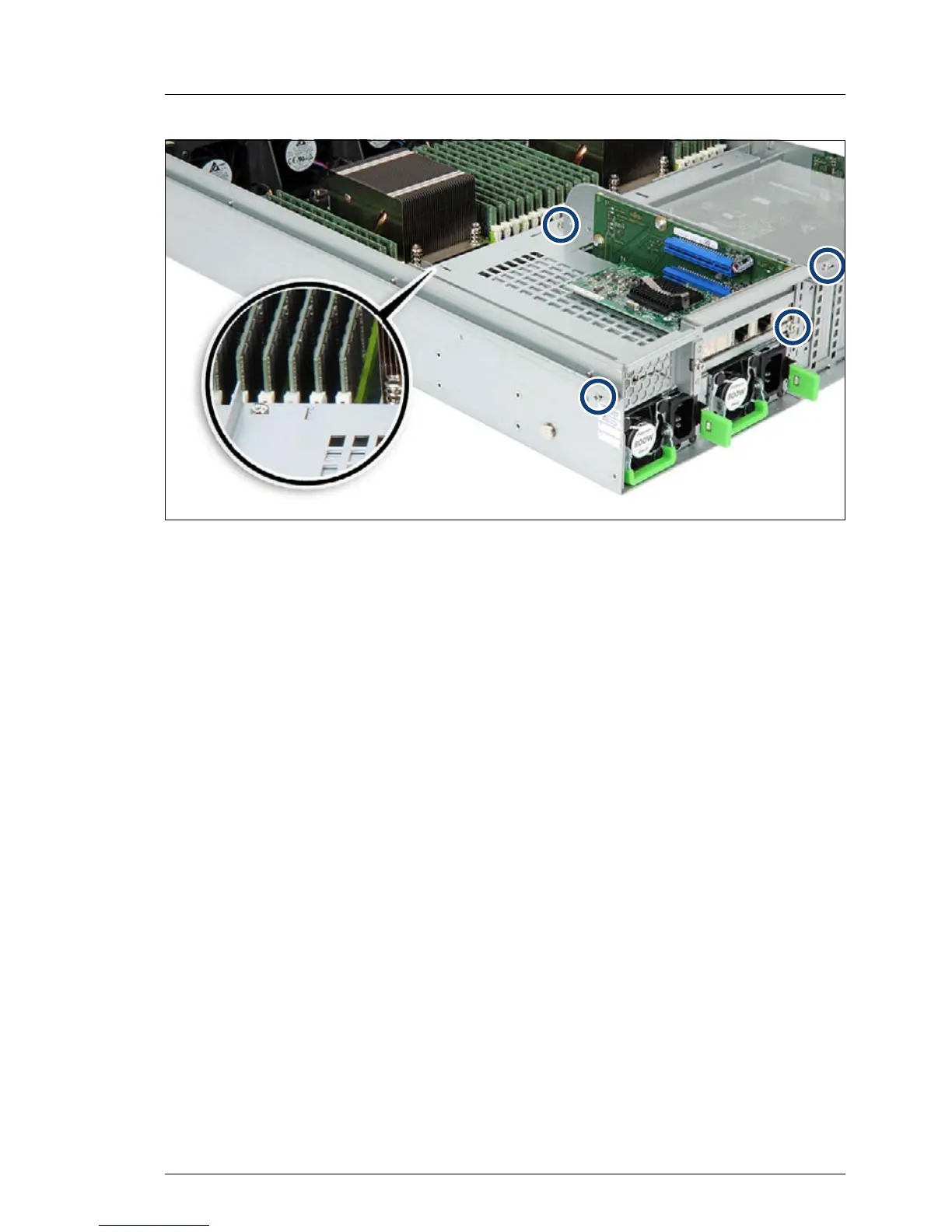

Figure 109: Removing the riser module 2 (B)
Ê Remove five screws (see circles and closeup).
Ê Carefully take out the riser module.
9.5.4.3 Removing an expansion card (HL)
Ê Remove the expansion card as described in section "Removing an
expansion card (HL)" on page 194.
