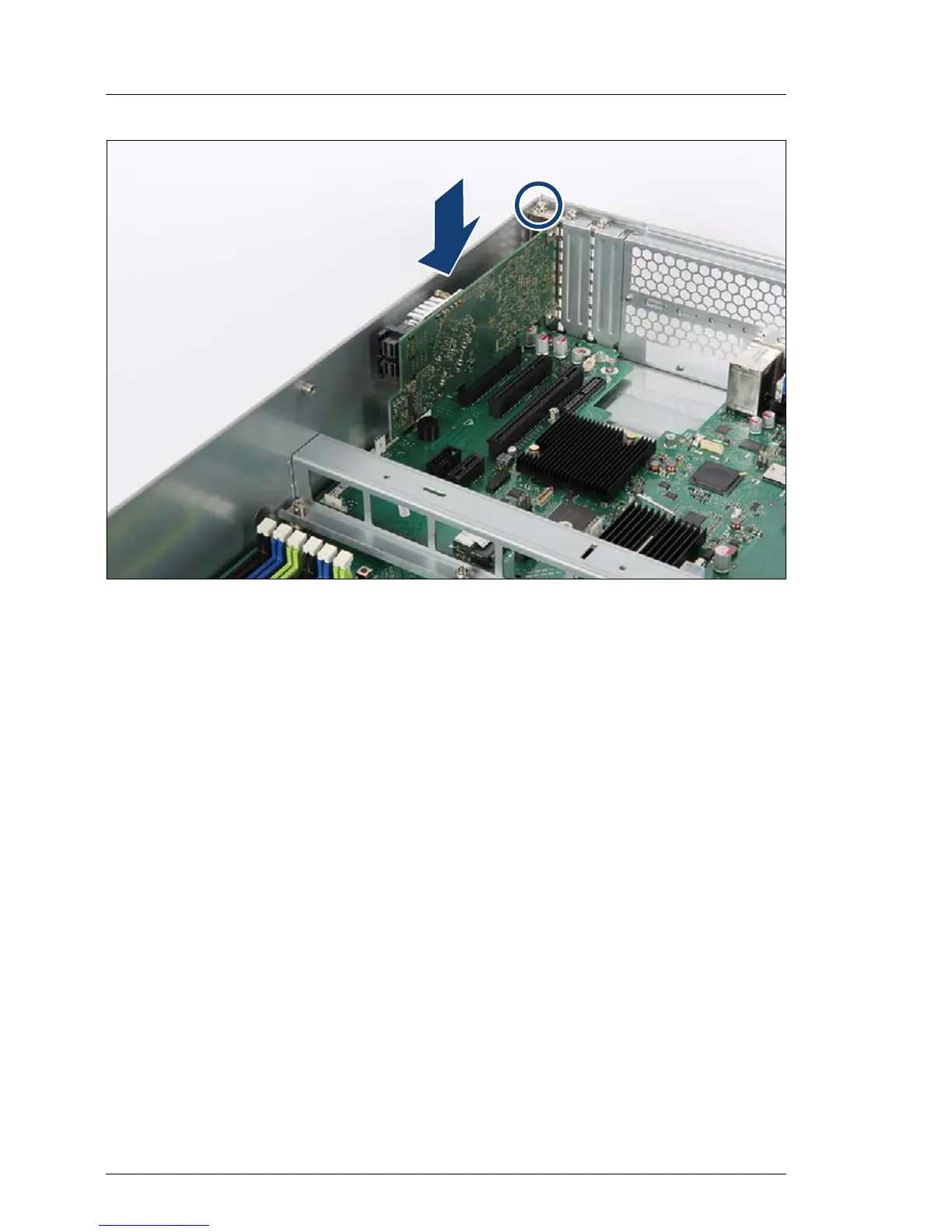

Figure 89: Installing the expansion card
Ê Carefully insert the expansion card into the desired PCI slot and press down
firmly until it is fully seated in the slot.
Ê Fasten the expansion card with the screw (see circle).
Ê If applicable, install SFP+ transceiver modules into the new expansion card,
as described in section "Installing SFP+ transceiver modules" on page 172.
Ê If applicable, connect internal cables to the expansion card.
I For a complete cabling overview, please refer to section "List of used
cables" on page 411.
Ê If applicable, connect a FBU to the expansion card as described in section
"Installing a FBU" on page 237.
9.4.1.4 Concluding steps
Ê "Reassembling" on page 61
Ê If applicable, reconnect all external cables to the expansion card.
Ê "Connecting the server to the power source" on page 66
Ê "Switching on the server" on page 67
