114 Upgrade and Maintenance Manual RX2540 M1
Hard disk drives / solid state drives
7.2.1.3 HDD mounting order for 12x 3.5-inch HDD configurations

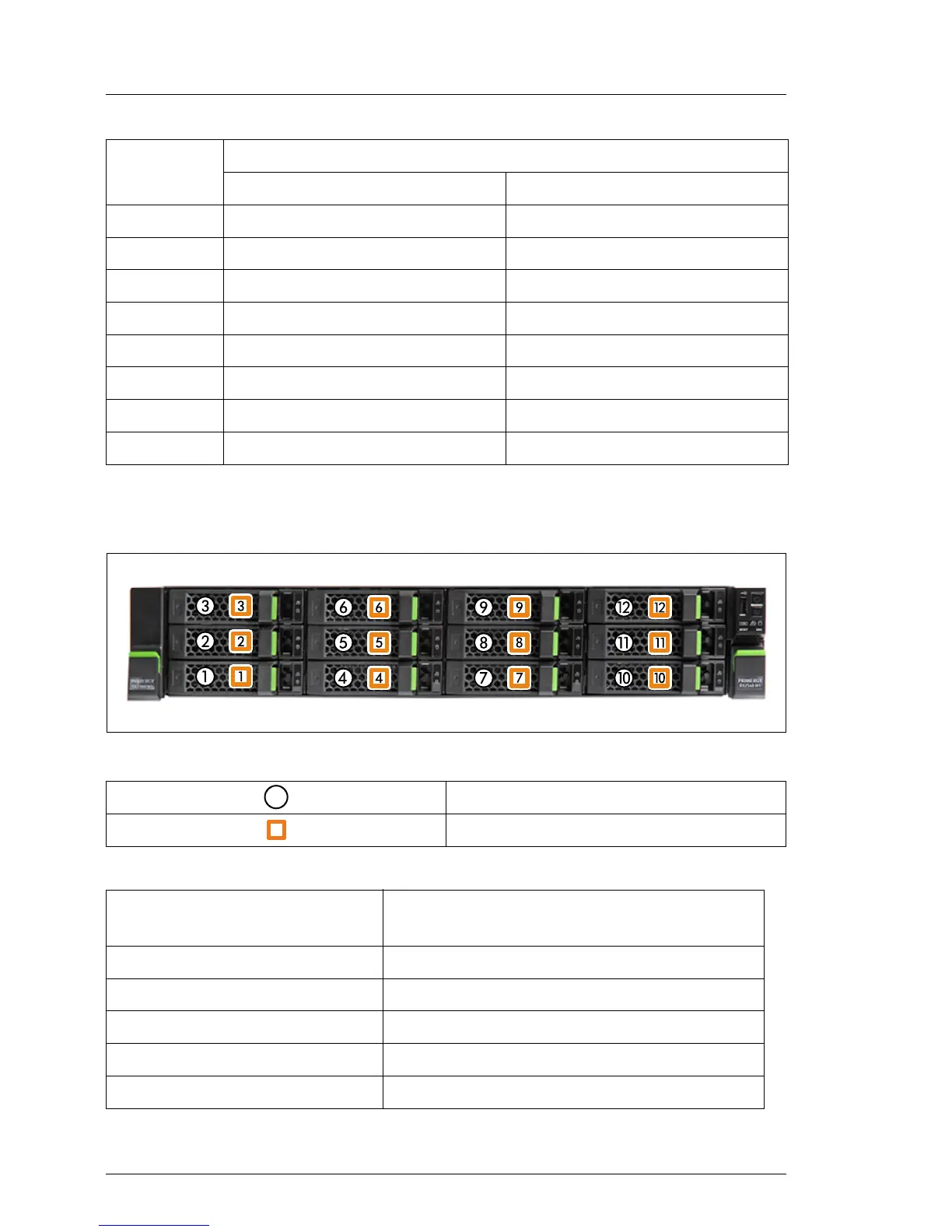

Figure 21: 12x 3.5-inch HDD mounting order
Bay
number
SV RAID Manager
one SAS RAID controller twoSAS RAID controller
1 HDD0 CTRL0-HDD0
2 HDD1 CTRL0-HDD1
3 HDD2 CTRL0-HDD2
4 HDD3 CTRL0-HDD3
5 HDD4 CTRL1-HDD0
6 HDD5 CTRL1-HDD1
7 HDD6 CTRL1-HDD2
8 HDD7 CTRL1-HDD3
Mounting order
Bay number
Bay number SV RAID Manager (one SAS RAID
controller)
1 HDD0
2 HDD1
3 HDD2
4 HDD3
5 HDD4
