Fujitsu PRIMERGY RX2540 M1 - Installing the Front Panel Module on RMB

358 Upgrade and Maintenance Manual RX2540 M1
Front panel and external front connectors

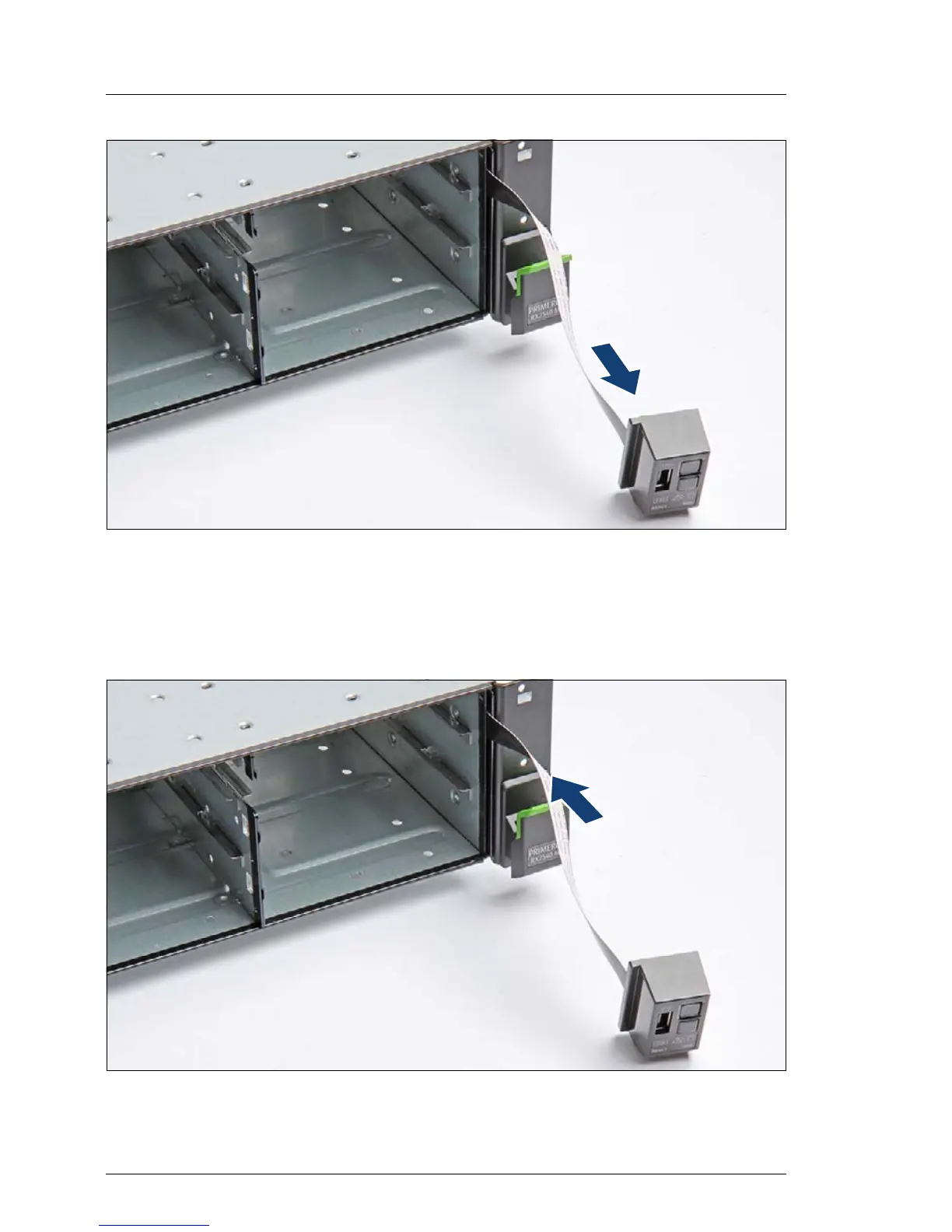

Figure 242: Removing the front panel module
Ê Carefully pull out the cable.
13.5.1.2 Installing the front panel module on RMB
Figure 243: Connecting the front panel cable to the front panel module
Ê Thread in the cable as shown.
