RX2540 M1 Upgrade and Maintenance Manual 205
Expansion cards and backup units
9.5.4.5 Installing the rear cover (riser module 2)

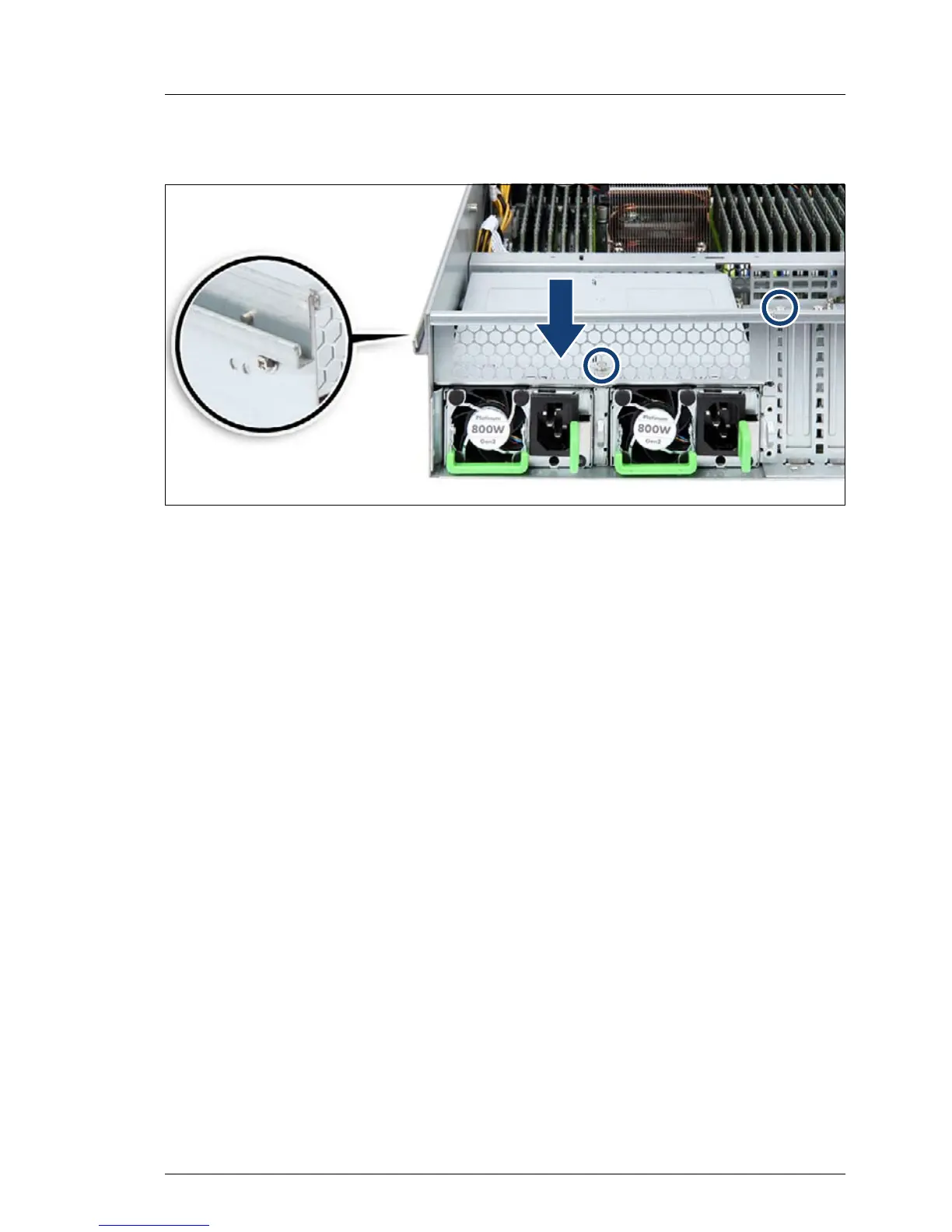

Figure 111: Installing the rear cover
Ê Insert the rear cover.
Ê Fasten the rear cover with three screws (see circles and closeup).
9.5.4.6 Insert the riser module 2 (HL)
Optionally you can install the riser module. In this case proceed as follows:
Ê Install the riser module as described in section "Installing the riser module 2
(HL)" on page 200.
9.5.4.7 Concluding steps
Ê "Reassembling" on page 61
Ê "Connecting the server to the power source" on page 66
Ê "Switching on the server" on page 67
Ê "Enabling BitLocker functionality" on page 92
