Fujitsu PRIMERGY RX2540 M1 - Removing the COM1 Connector

RX2540 M1 Upgrade and Maintenance Manual 269
Expansion cards and backup units
9.9.2.2 Removing the COM1 connector

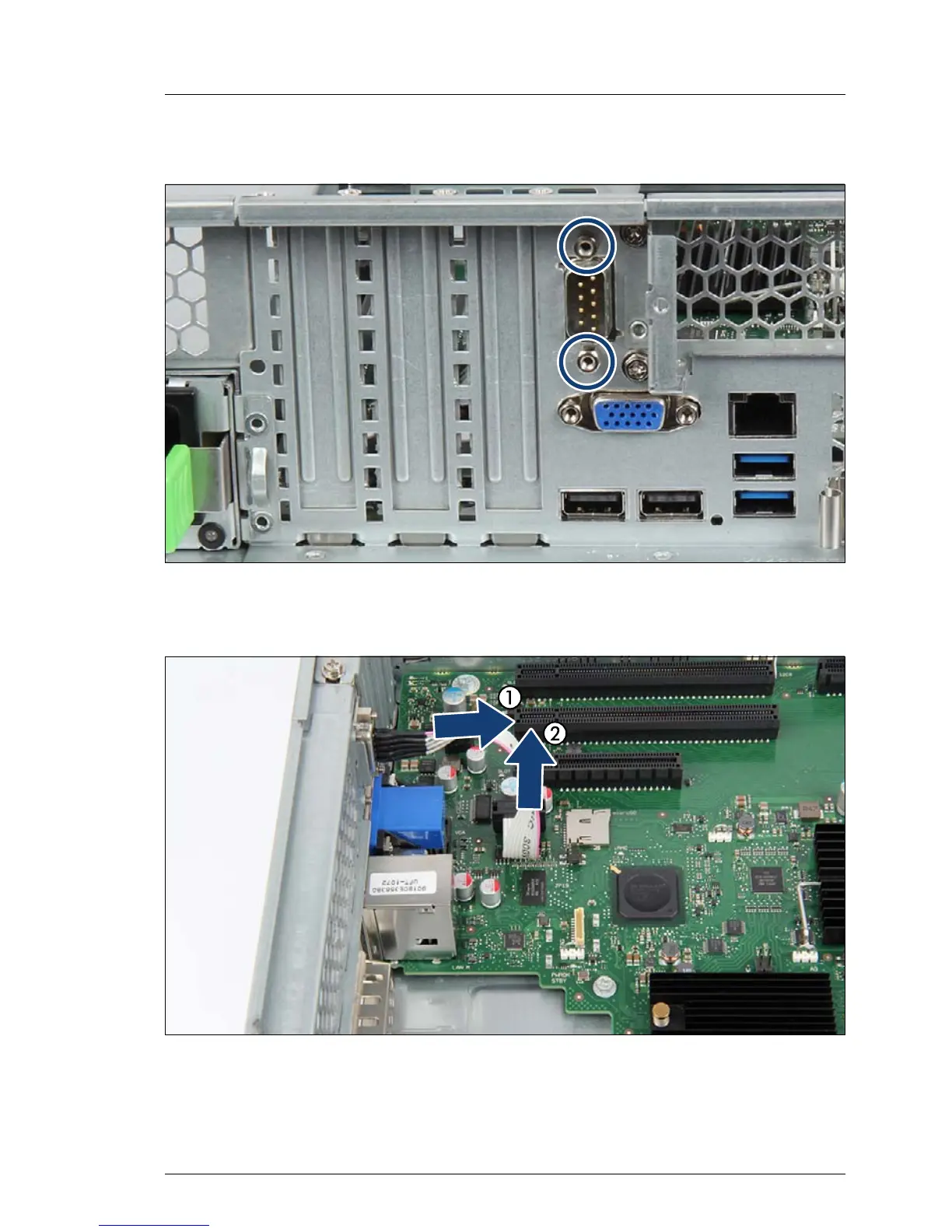

Figure 172: Removing the COM1 connector (A)
Ê Remove the two bolts.
Figure 173: Removing the COM1 connector (B)
Ê Remove the external connector from the slot cover (1).
Ê Remove the cable from the system board (2)
