Fujitsu PRIMERGY RX2540 M1 - Handling Slot Brackets; Installing a Slot Bracket; Installing a Standard Slot Bracket

166 Upgrade and Maintenance Manual RX2540 M1
Expansion cards and backup units
9.2 Handling slot brackets
9.2.1 Installing a slot bracket
9.2.1.1 Installing a standard slot bracket

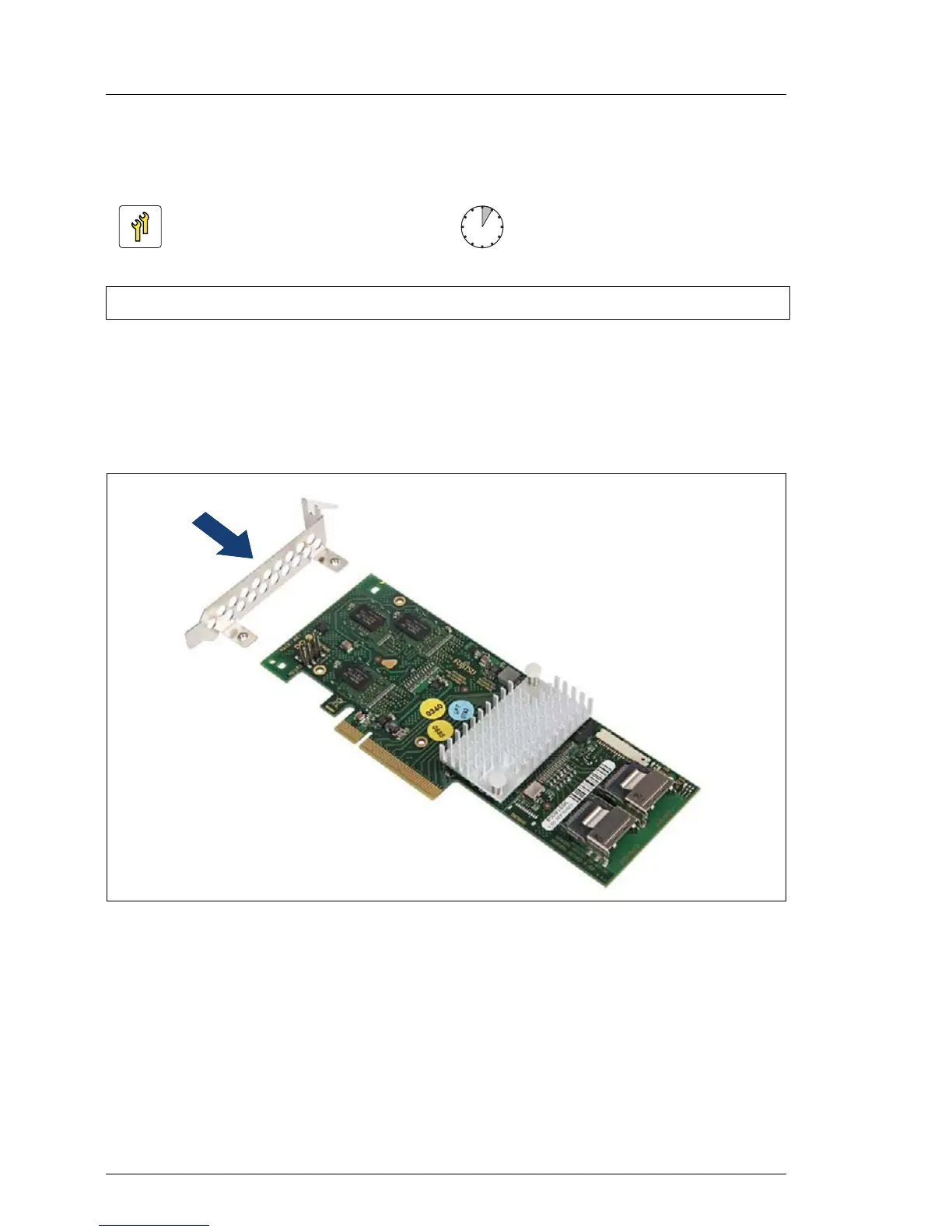

Figure 72: Installing a standard slot bracket (A)
Ê Place the controller on the mounting tabs on the slot bracket.
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Tools: Phillips PH2 / (+) No. 2 screw driver
