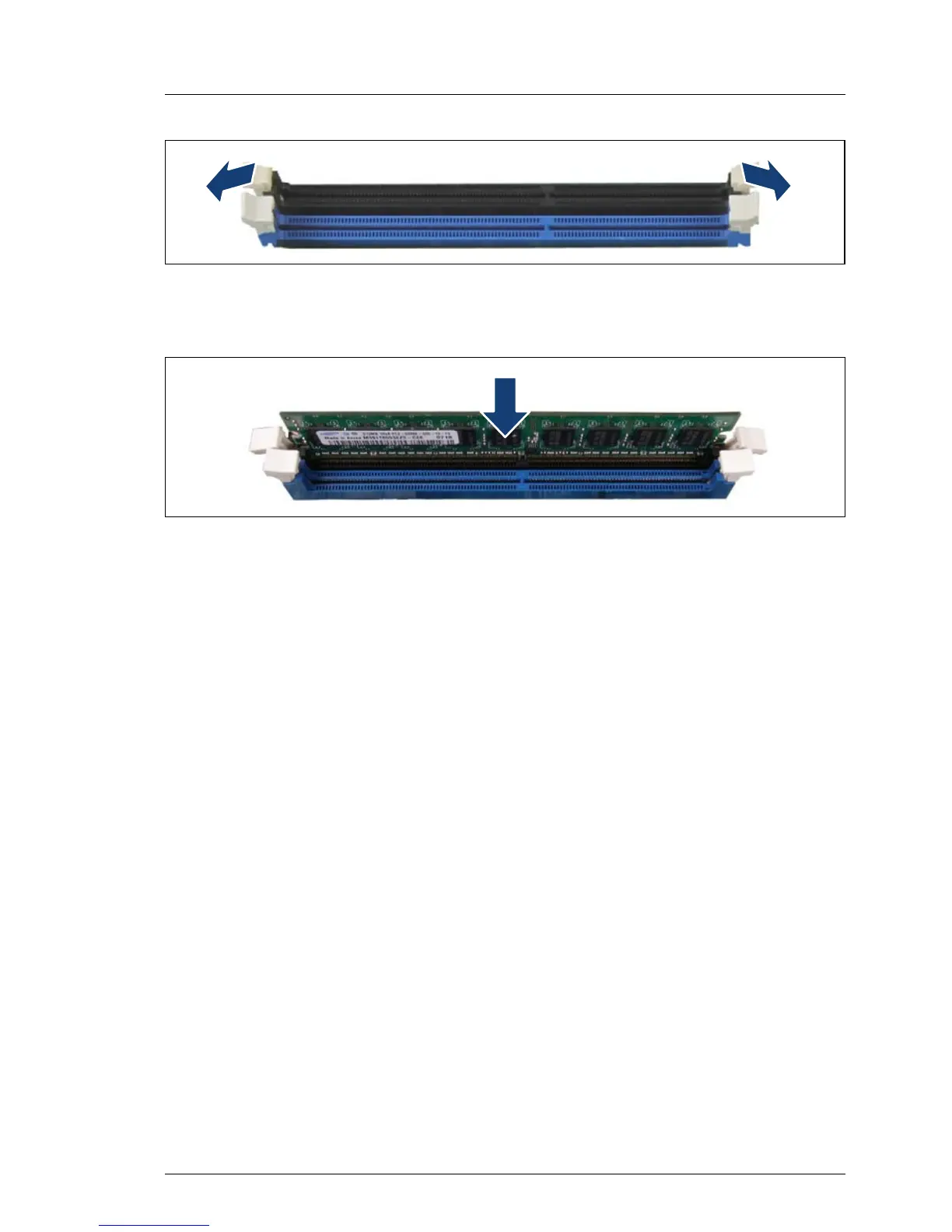

Figure 175: Installing memory modules (A)
Ê Press out the securing clip at each end of the memory slot.
Figure 176: Installing memory modules (B)
Ê Align the notch on the bottom of the module with the crossbar in the slot.
Ê Press down on the memory module until the securing clips snap into the
cut-outs at each end of the module.
10.2.3 Concluding steps
Ê "Reassembling" on page 61
Ê "Connecting the server to the power source" on page 66
Ê "Switching on the server" on page 67
Ê "Updating or recovering the system board BIOS and iRMC" on page 77
Ê "Enabling SVOM boot watchdog functionality" on page 86
Ê "Verifying the memory mode" on page 87
Ê "Enabling BitLocker functionality" on page 92
