Fujitsu PRIMERGY RX2540 M1 - Installing the FBU

216 Upgrade and Maintenance Manual RX2540 M1
Expansion cards and backup units
Figure 118: Connecting the power cable
Ê Connect the power cable to the connector on the GPGPU and the connector
PWR 12V 4 on the system board as shown.
Ê Route the power cable close to the GPGPU.
9.6.1.9 Installing the FBU

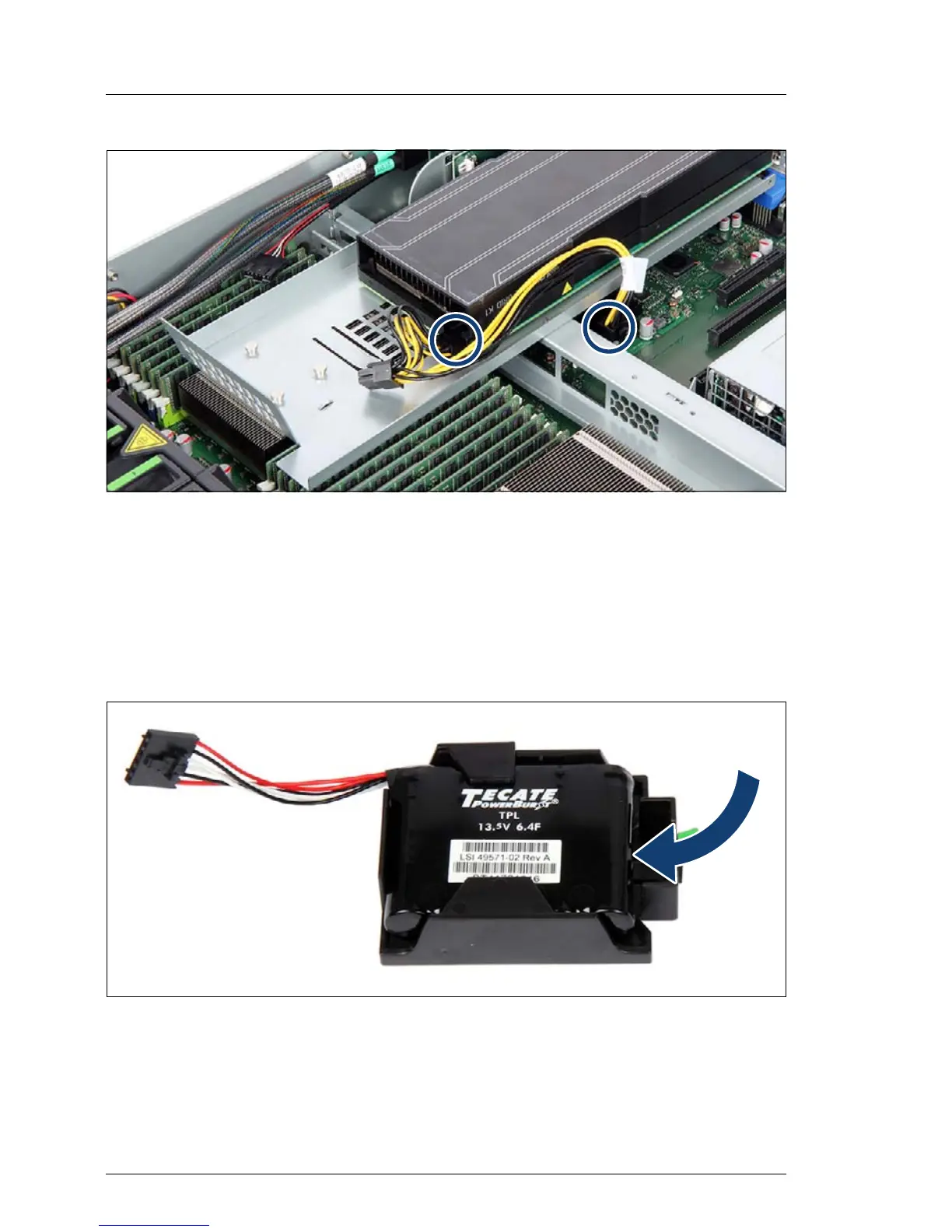

Figure 119: Installing the FBU in the holder
Ê At a slight angle, fit the FBU under both retaining brackets of the holder.
I Insert the FBU in the direction as shown.
