144 Upgrade and Maintenance Manual RX2540 M1
Hard disk drives / solid state drives
7.3.4.3 Removing the defective SAS expander board

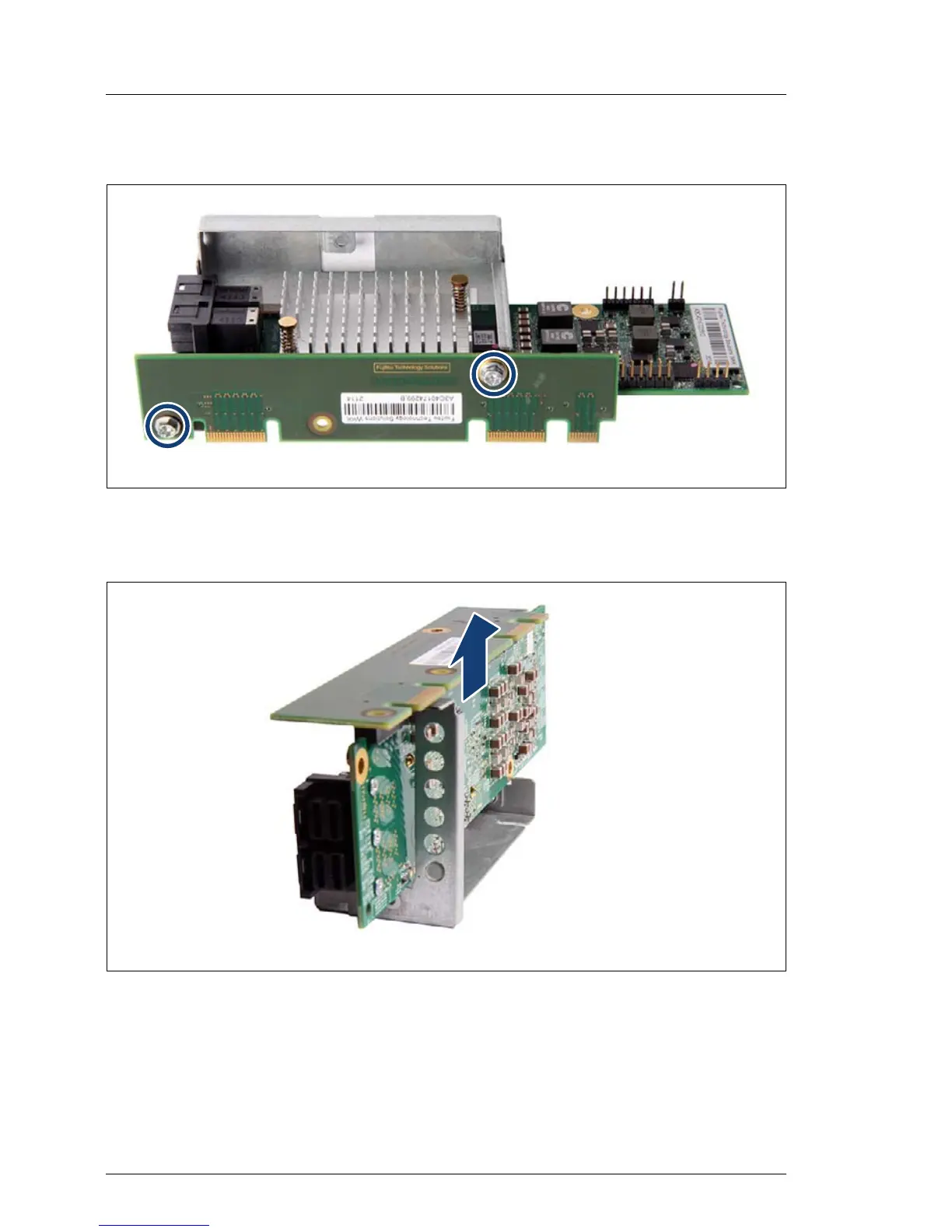

Figure 56: Removing the pre-mounted expander board (A)
Ê Remove the two screws (see circles).
Figure 57: Removing the pre-mounted expander board (B)
Ê Remove the pre-mounted SAS expander board.
