Fujitsu PRIMERGY RX2540 M1 - Connectors and Indicators on the Front Panel; Front Panel Connectors (3.5-Inch HDD Version); Front Panel Controls and Indicators (3.5-Inch HDD Version)

RX2540 M1 Upgrade and Maintenance Manual 431
Appendix
16.3.3 Connectors and indicators on the front panel
16.3.3.1 Front panel connectors (3.5-inch HDD version)

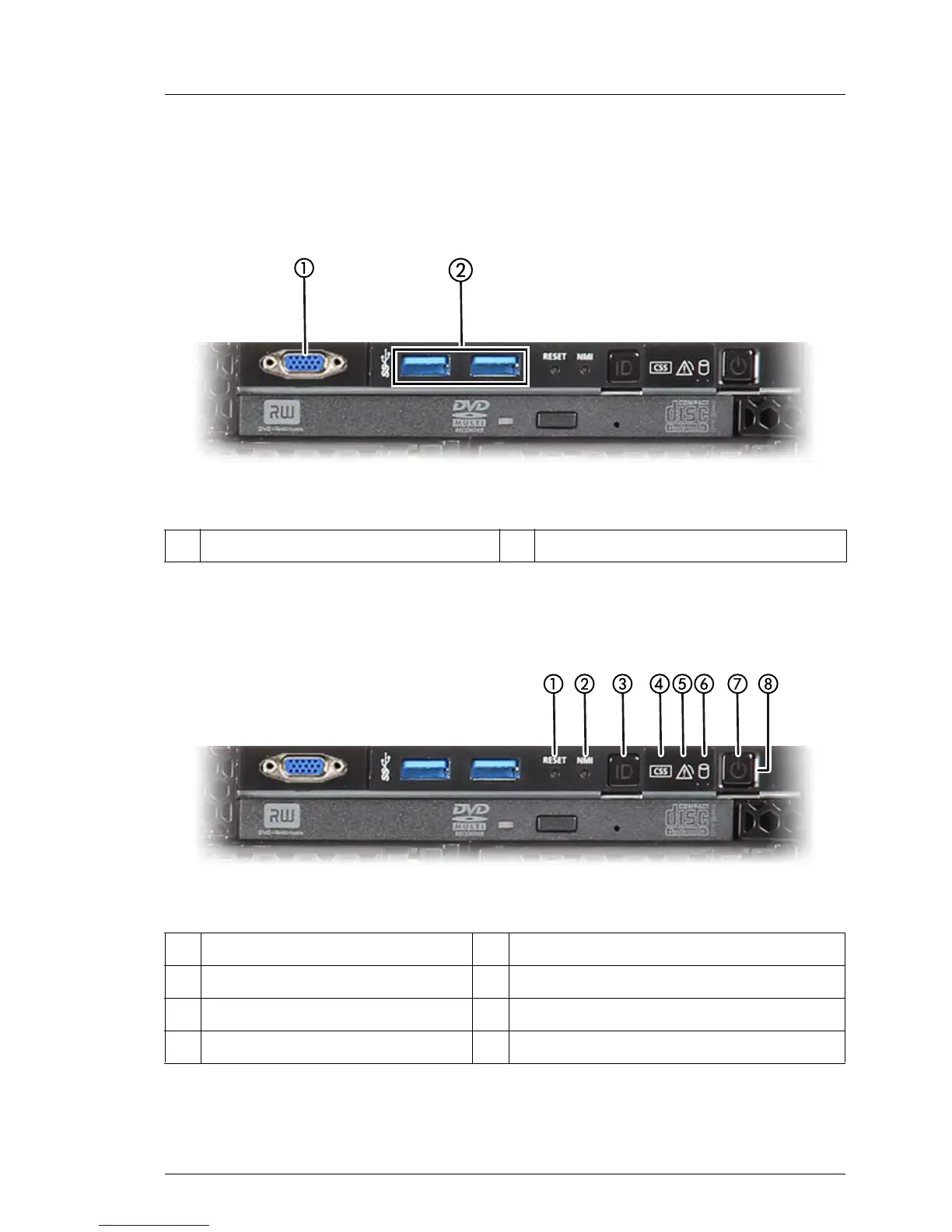

Figure 292: Front side connectors
16.3.3.2 Front panel controls and indicators (3.5-inch HDD version)
Figure 293: Front side of the 3.5-inch variant: indicators and controls
1 Front VGA 2 USB 3.0
1 Reset button 5 Global Error indicator
2 NMI button 6 HDD activity indicator
3 ID button / ID indicator 7 On/Off button / Power-on indicator
4 CSS indicator 8 Power-off indicator (AC connected)
