Fujitsu PRIMERGY RX2540 M1 - Installing the FBU Holder Onto the Air Duct; Concluding Steps

RX2540 M1 Upgrade and Maintenance Manual 243
Expansion cards and backup units

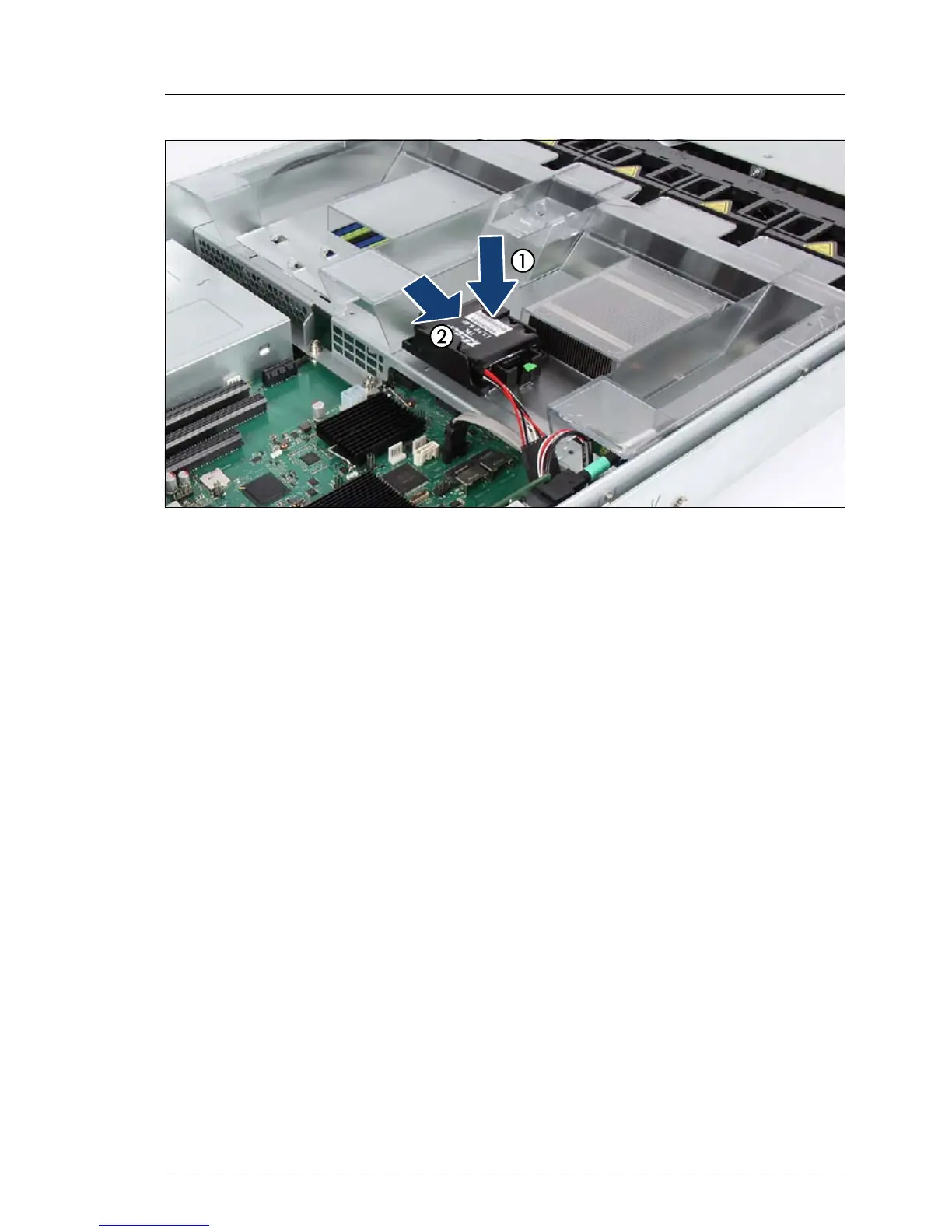

Figure 147: Installing the FBU (B)
Ê Insert the FBU holder into the air duct so that the three hooks on the air duct
rest in the wide ends of the keyhole slots on the FBU holder (1).
Ê Slide the FBU holder in as far as it will go (2).
The hooks on the air duct will lock in the narrow ends of the keyhole slots on
the FBU holder.
Ê Ensure that the locking handle on the FBU holder properly snaps in place.
9.7.2.6 Concluding steps
Ê "Reassembling" on page 61
Ê "Connecting the server to the power source" on page 66
Ê "Switching on the server" on page 67
Ê If applicable, "Updating RAID controller firmware" on page 81.
Ê "Enabling SVOM boot watchdog functionality" on page 86
