Fujitsu PRIMERGY RX2540 M1 - 9.1 Basic information

160 Upgrade and Maintenance Manual RX2540 M1
Expansion cards and backup units
9.1 Basic information
The system board is equipped with seven expansion slots:

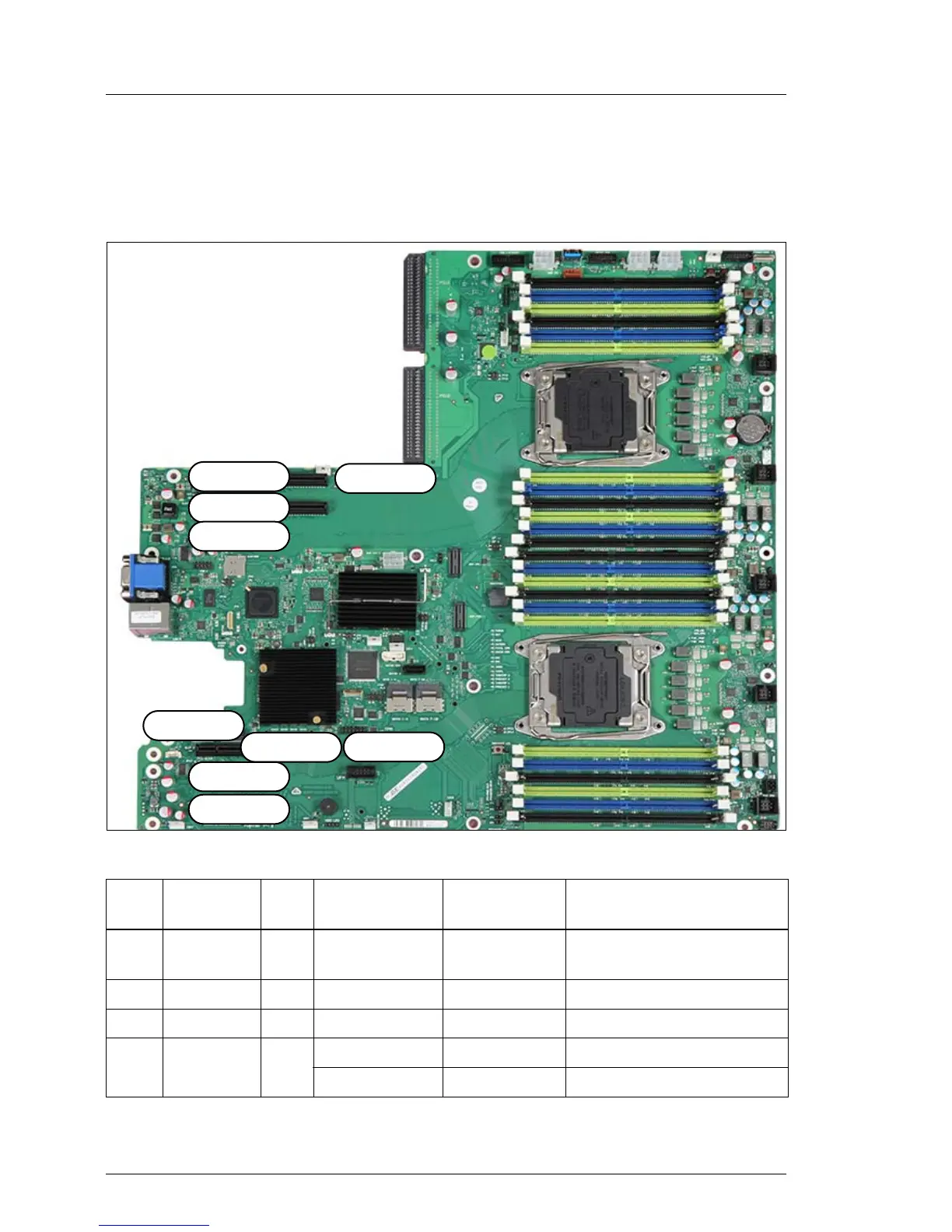

Figure 70: PCI slot overview
PCI
slot
Type CPU Type length Function
1 PCIe Gen 3 1 x8 (mech.x8)
half length
(HL)
only low profile (LP)
2 PCIe Gen 3 1 x8 (mech.x8) HL only LP
3** PCIe Gen 3 1 x16 (mech.x16) HL only LP, riser slot
4* PCIe Gen 3 1
x16 (mech.x16) full length (FL) full heigth (FH), with D3264
x8 (mech.x8) FL FH, with D3274
Slot 9
Riser 2
Slot 8
Slot 7
DynLoM
Slot 3
Slot 2
Slot 1
Riser 1
